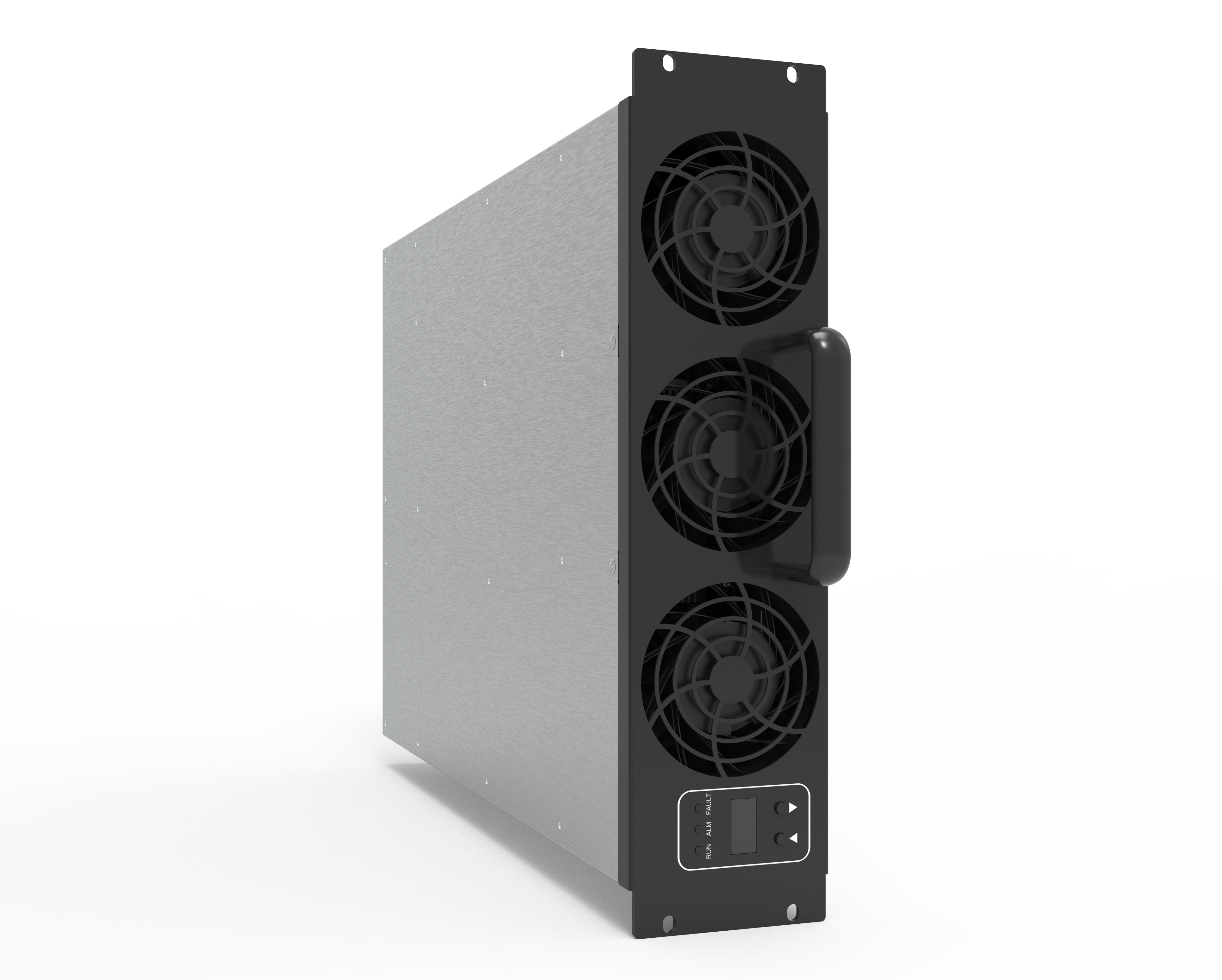

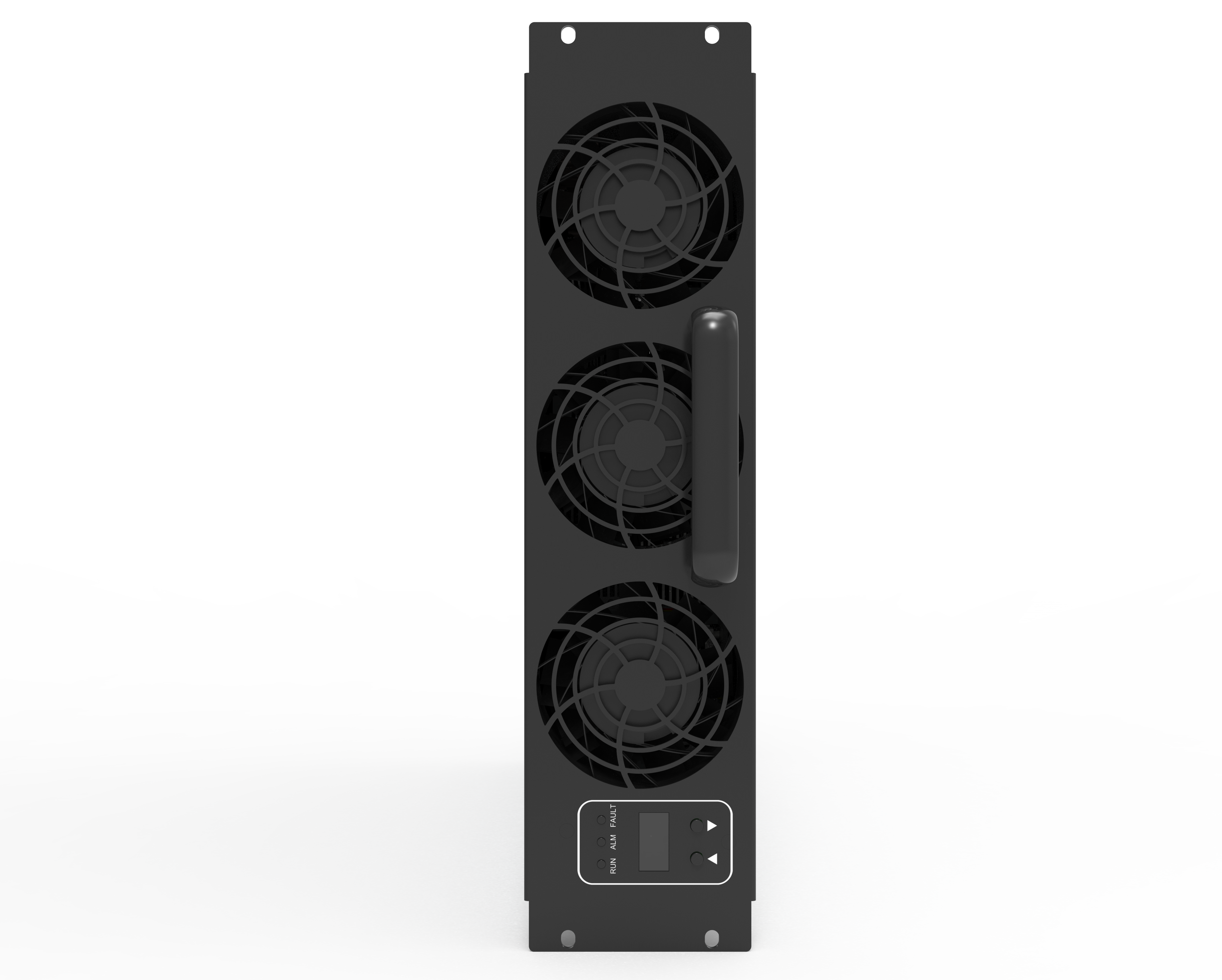

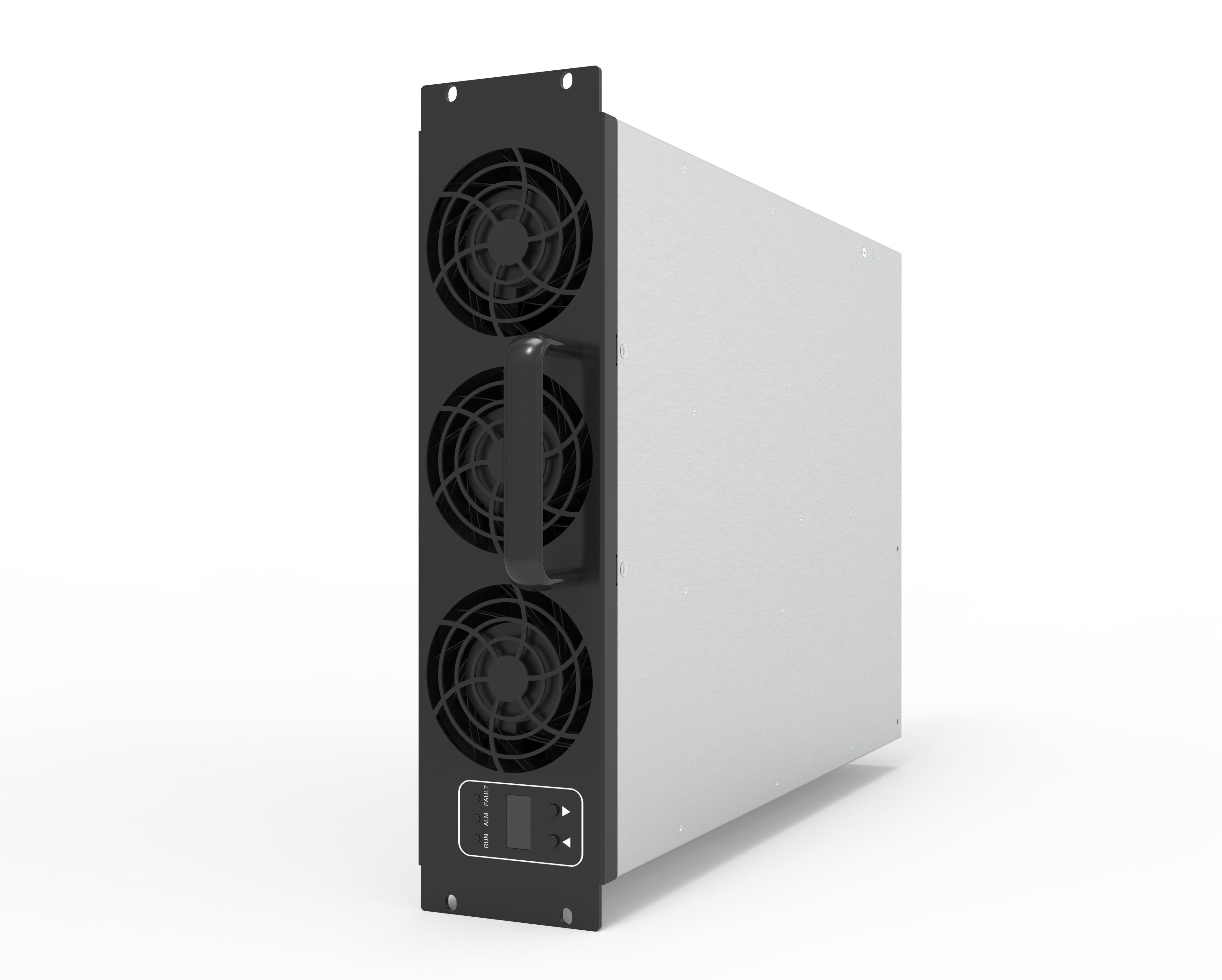

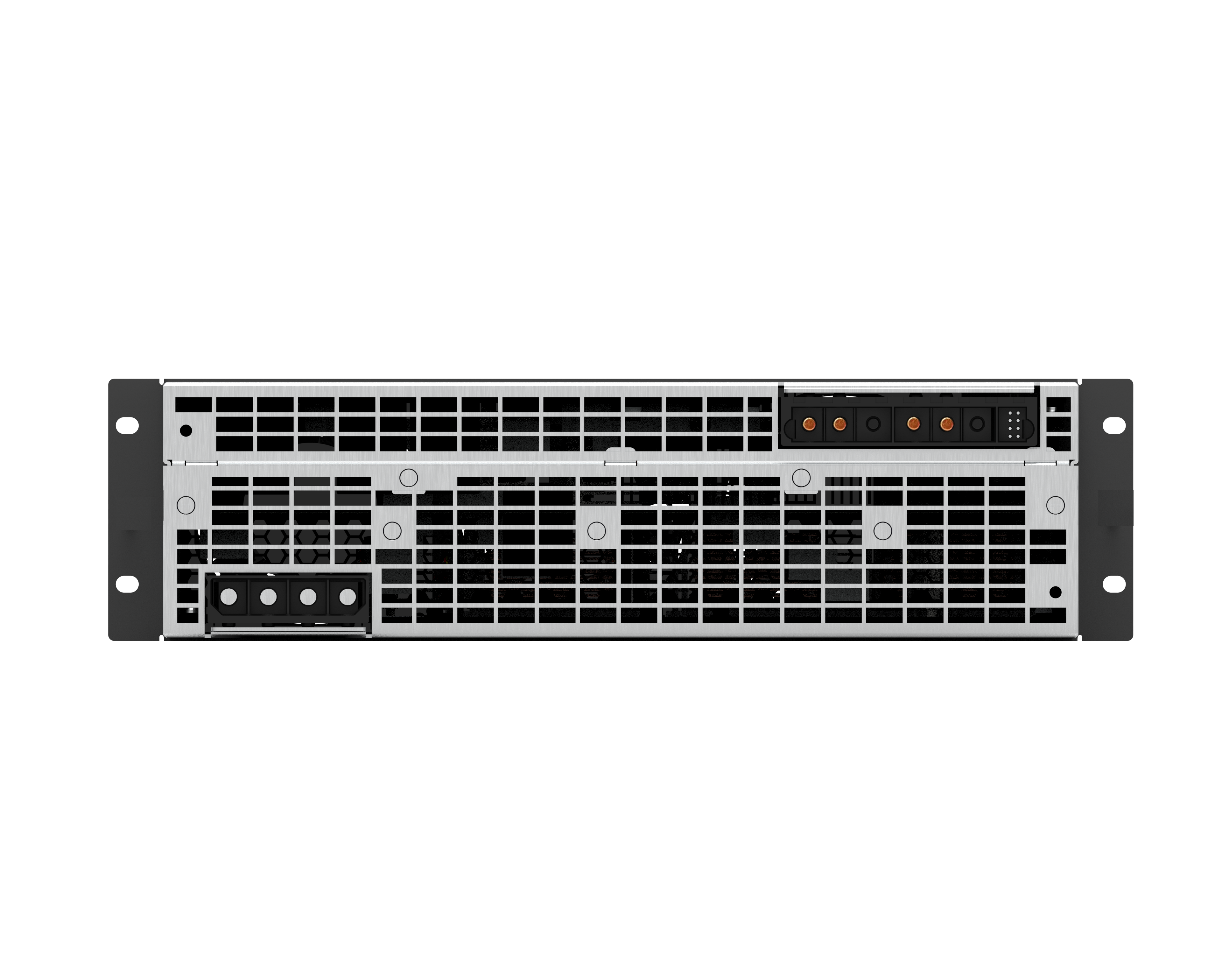

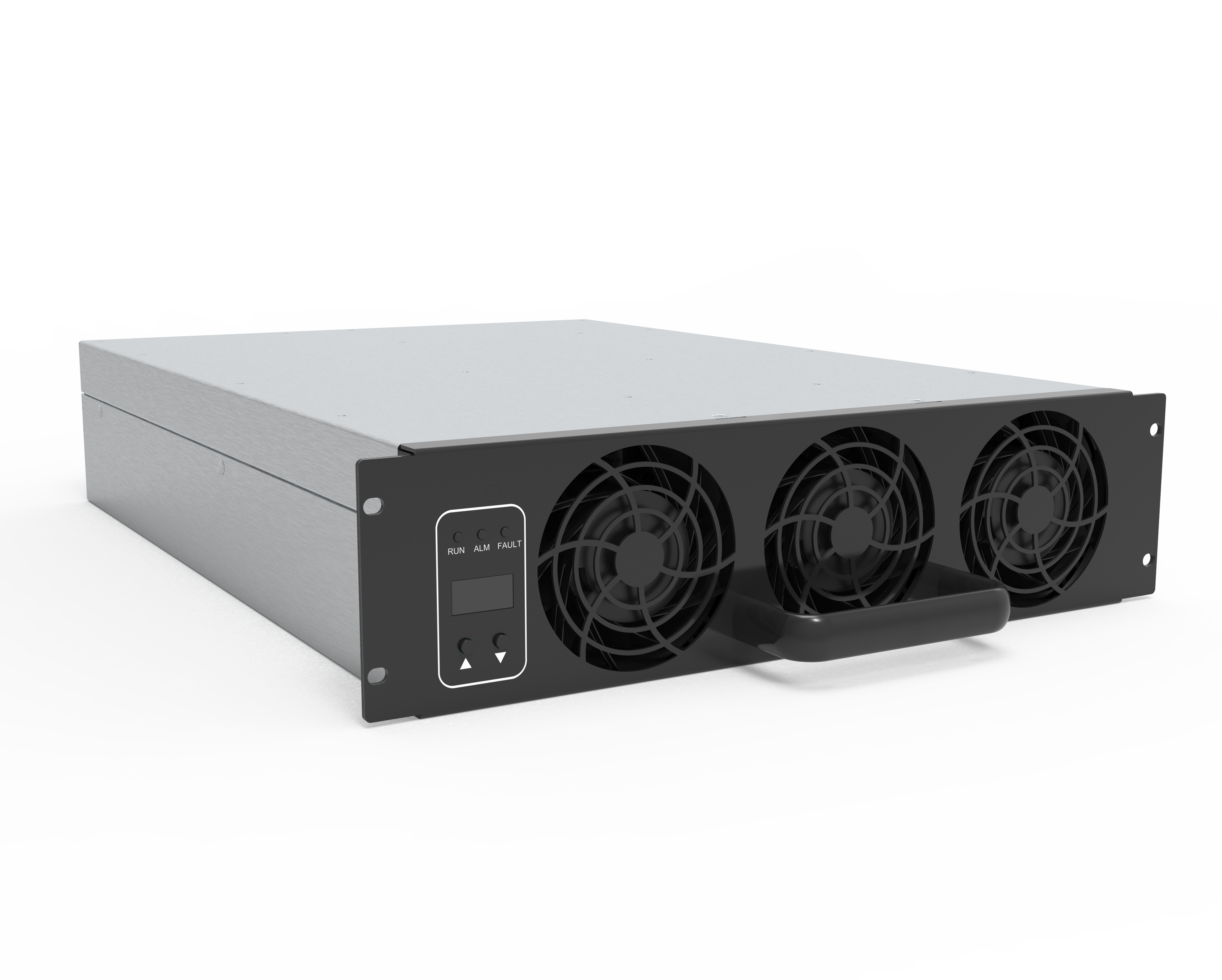

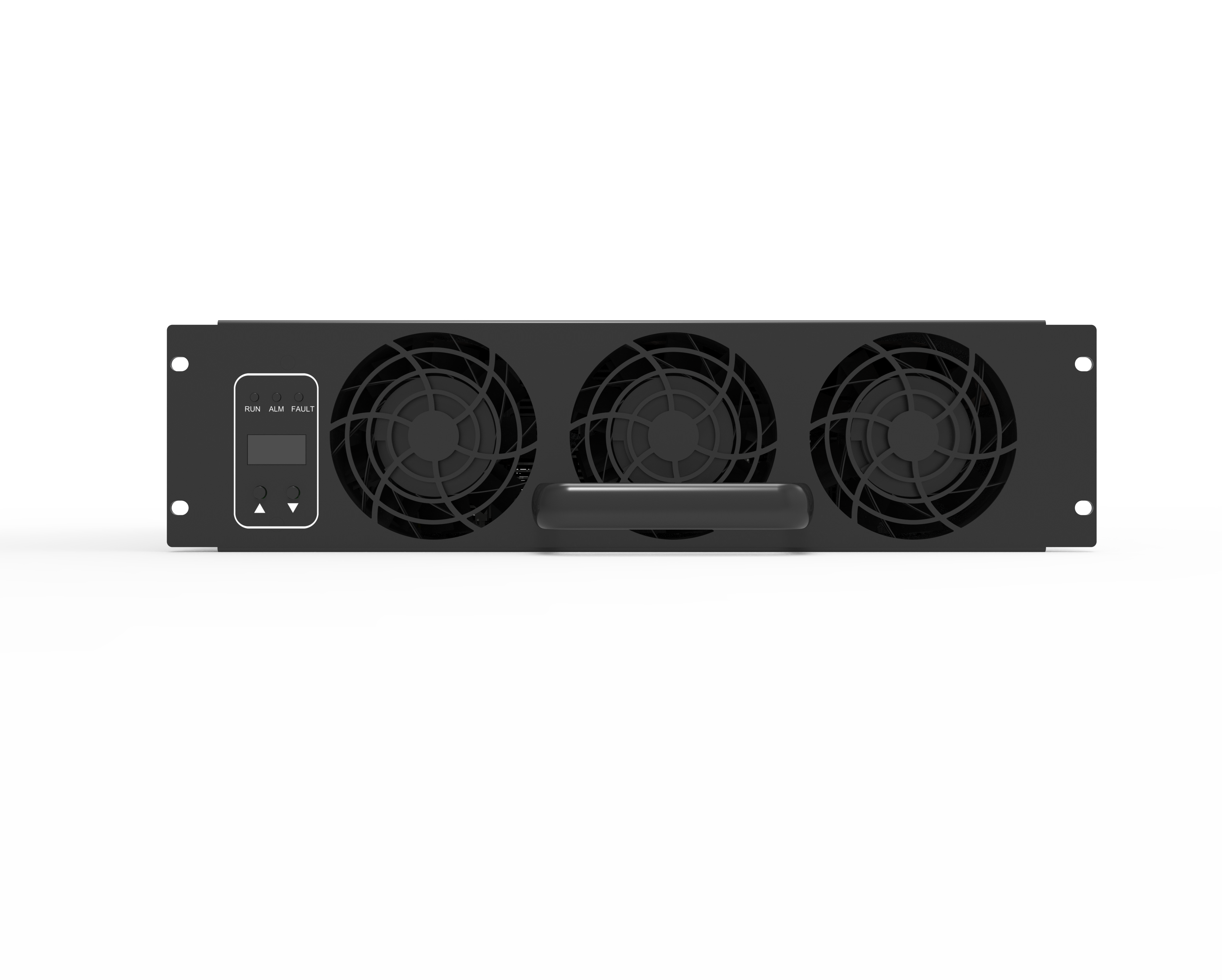

UXR100030S 30kW 1000V High-Power Density Fully Potted Power Module
Key Features:
- Ultra-wide output voltage range of 50-1000Vdc;
- Ultra-wide constant power output range of 300-1000V at 30kW;
- No current retractionin low voltage areas for faster charging;
- Built-in residual voltage discharge circuit to reduce system cost and enhance reliability;
INTRODUCTION
The UXR100030S is a high-power density, fully potted charging module. It features an ultra-wide voltage range, high full-load operating temperature, and superior efficiency. The module is designed for high reliability, low noise, and low standby power consumption.
EXCELLENT ADVANTAGES
- Super Standby Mode
- Zero Reactive Power
- Full Potted Protection
- Full-Load Working during Ultra-high Temperature:55℃
PARAMETERS | |
Dimensions | 84mm (H) ×300 mm (W) ×395mm (D) |
Weight | ≤17 kg |
Input Voltage | 285Vac~475Vac , 3P + PE |
Input Current | <60A |
Output Power | 30kW@Output voltage ≥300Vdc |
Voltage Range | 50Vdc~1000Vdc, default value: 200Vdc |
Current Range | 0A~100A |
Download
UXR100030S data sheet
Details
INTRODUCTION
The UXR100030S is a high-power density, fully potted charging module. It features an ultra-wide voltage range, high full-load operating temperature, and superior efficiency. The module is designed for high reliability, low noise, and low standby power consumption.
EXCELLENT ADVANTAGES
- Super Standby Mode
- Zero Reactive Power
- Full Potted Protection
- Full-Load Working during Ultra-high Temperature:55℃
PARAMETERS | |
Dimensions | 84mm (H) ×300 mm (W) ×395mm (D) |
Weight | ≤17 kg |
Input Voltage | 285Vac~475Vac , 3P + PE |
Input Current | <60A |
Output Power | 30kW@Output voltage ≥300Vdc |
Voltage Range | 50Vdc~1000Vdc, default value: 200Vdc |
Current Range | 0A~100A |
