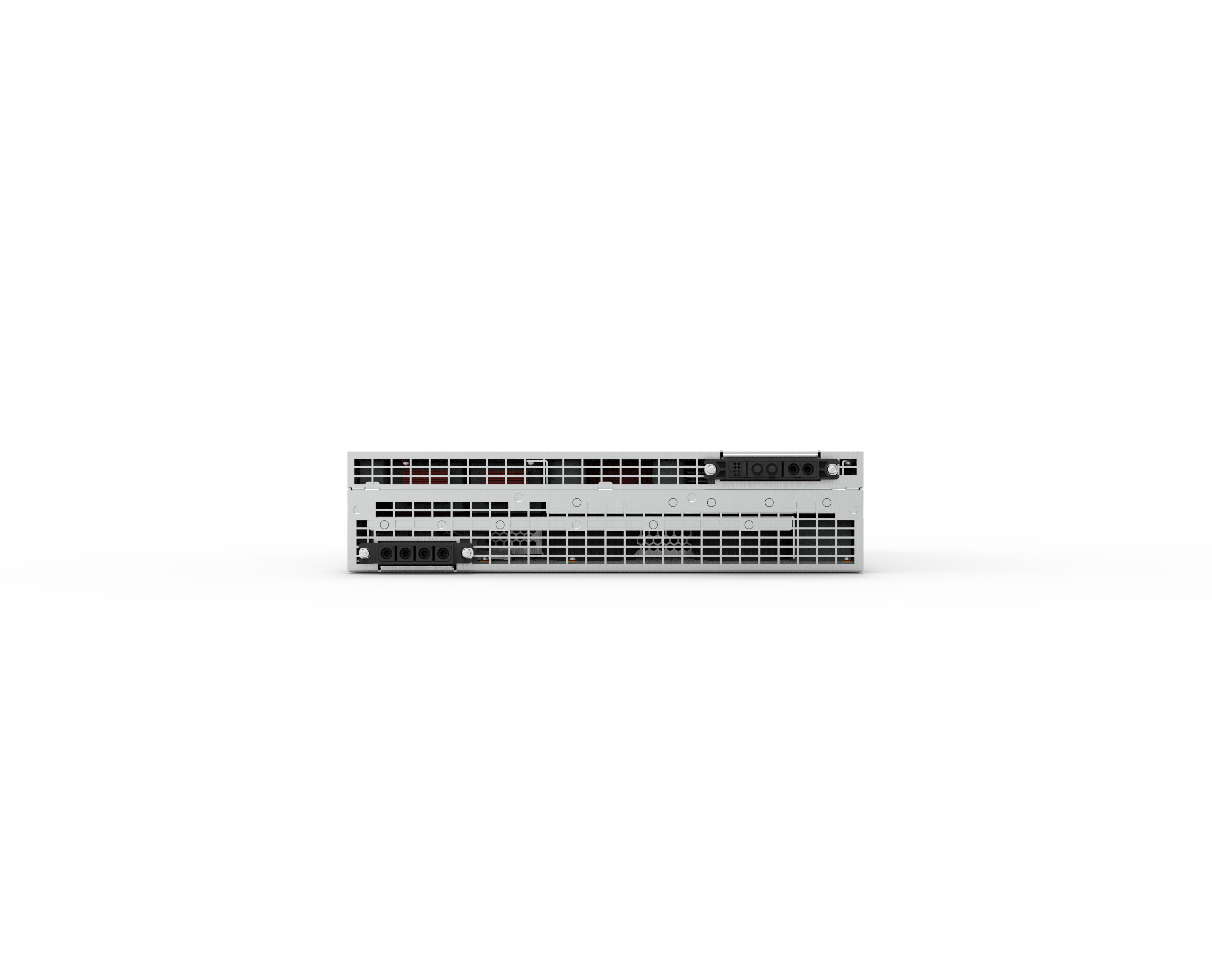

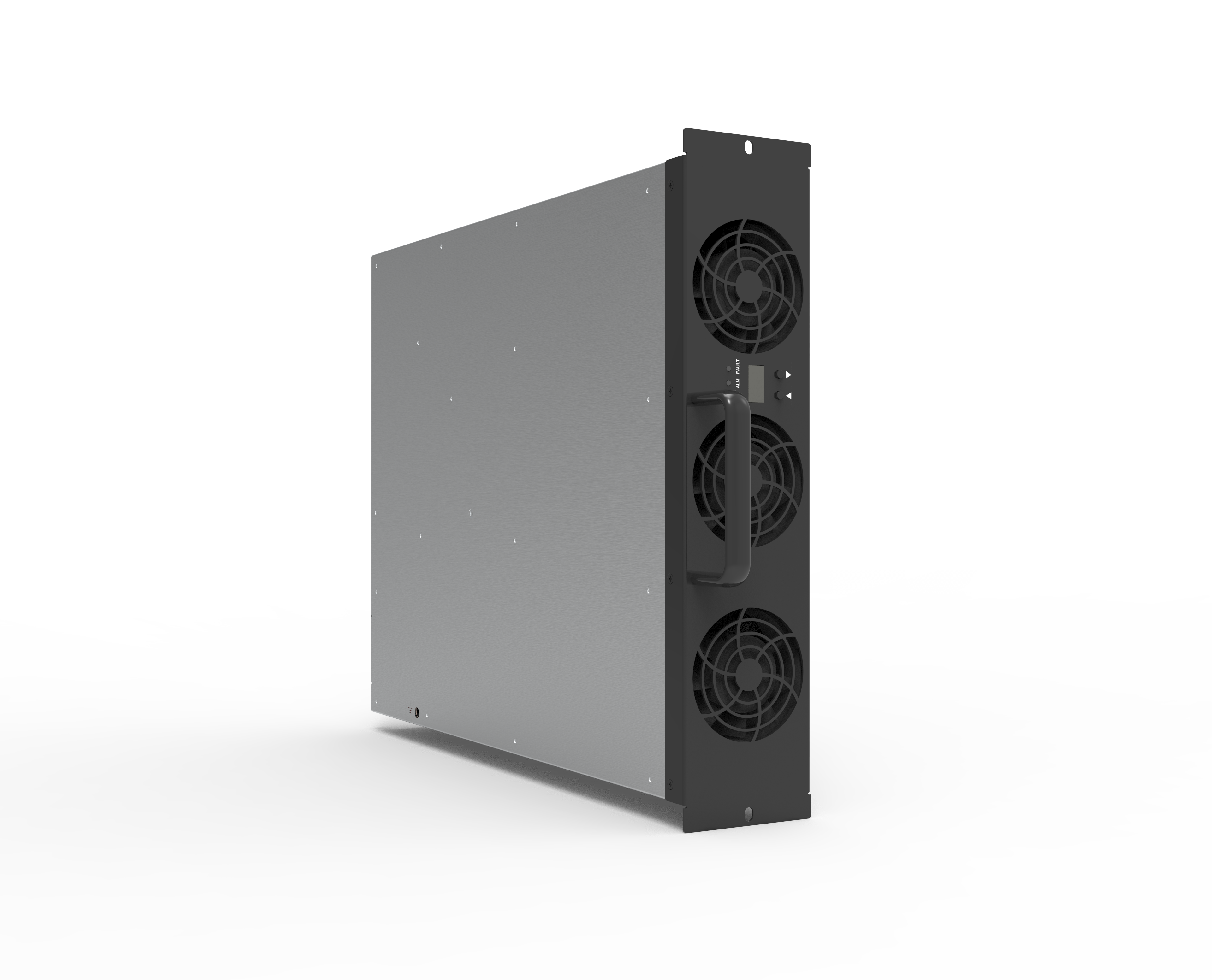

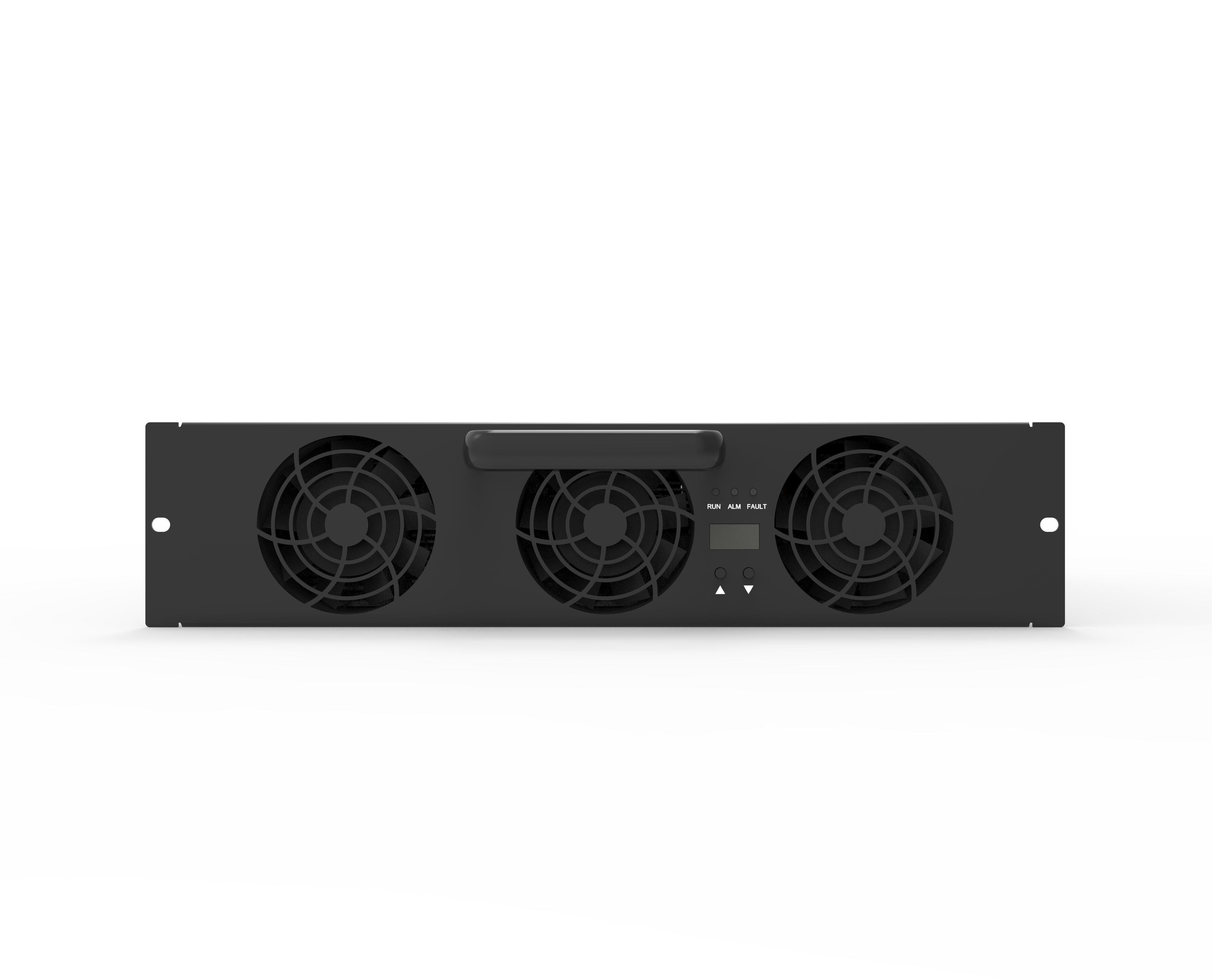

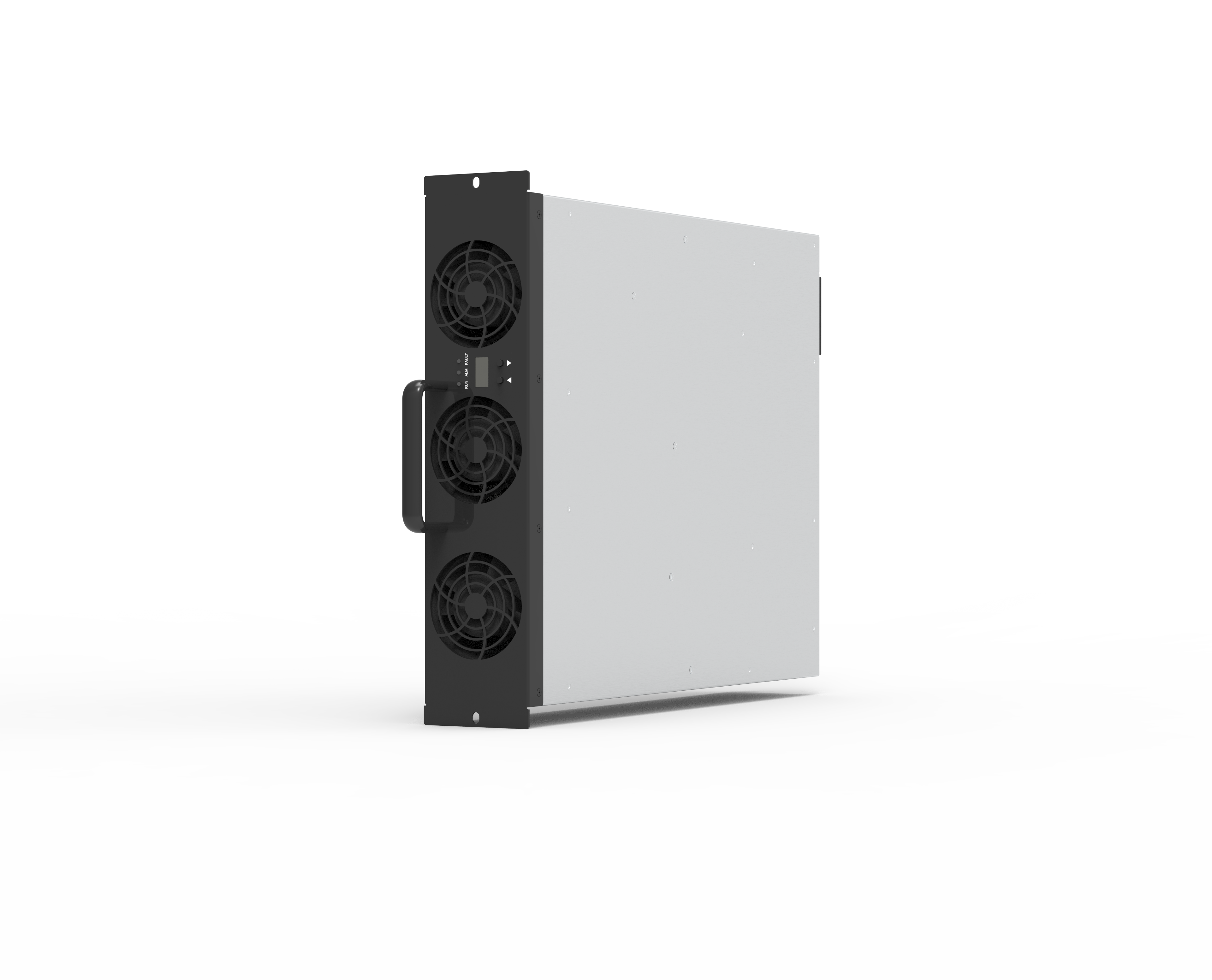

UXR100030G 30kW 1000V High-Performance Fully Potted Power Module for International Markets
Key features:
1、 Ultra-wide output voltage range of 50-1000Vdc;
2、Ultra-wide constant power output range of 300-1000V at 30kW;
3、No current retractionin low voltage areas for faster charging;
4、Built-in residual voltage discharge circuit to reduce system cost and enhance reliability;
Introduction:
The UXR100030G is a fully potted charging module designed to meet the IEC 61851-23:2023 standard. It features ultra-high full-load operating temperature and ultra-wide constant power range. The module also offers high reliability, efficiency, power factor, power density, wide output voltage range, low noise, low standby power consumption, and excellent EMC performance.
Excellent advantage
- High efficiencyof 96.8%
- Full-load working during ultra-high temperatureof 55℃
- Fully potted protection
- EMC Class B compliance
PARAMETERS | |
Dimensions | 85mm (H) ×360 mm (W) ×459mm (D) |
Weight | ≤20 kg |
Input Voltage | 260Vac~530Vac, 3P+ PE |
Input Current | <60A |
Output Power | 30kW@Output voltage ≥300Vdc |
Voltage Range | 50Vdc~1000Vdc, default value: 200Vdc |
Current Range | 0A~100A |
Download
UXR100030G data sheet
Details
Introduction:
The UXR100030G is a fully potted charging module designed to meet the IEC 61851-23:2023 standard. It features ultra-high full-load operating temperature and ultra-wide constant power range. The module also offers high reliability, efficiency, power factor, power density, wide output voltage range, low noise, low standby power consumption, and excellent EMC performance.
Excellent advantage
- High efficiencyof 96.8%
- Full-load working during ultra-high temperatureof 55℃
- Fully potted protection
- EMC Class B compliance
PARAMETERS | |
Dimensions | 85mm (H) ×360 mm (W) ×459mm (D) |
Weight | ≤20 kg |
Input Voltage | 260Vac~530Vac, 3P+ PE |
Input Current | <60A |
Output Power | 30kW@Output voltage ≥300Vdc |
Voltage Range | 50Vdc~1000Vdc, default value: 200Vdc |
Current Range | 0A~100A |
