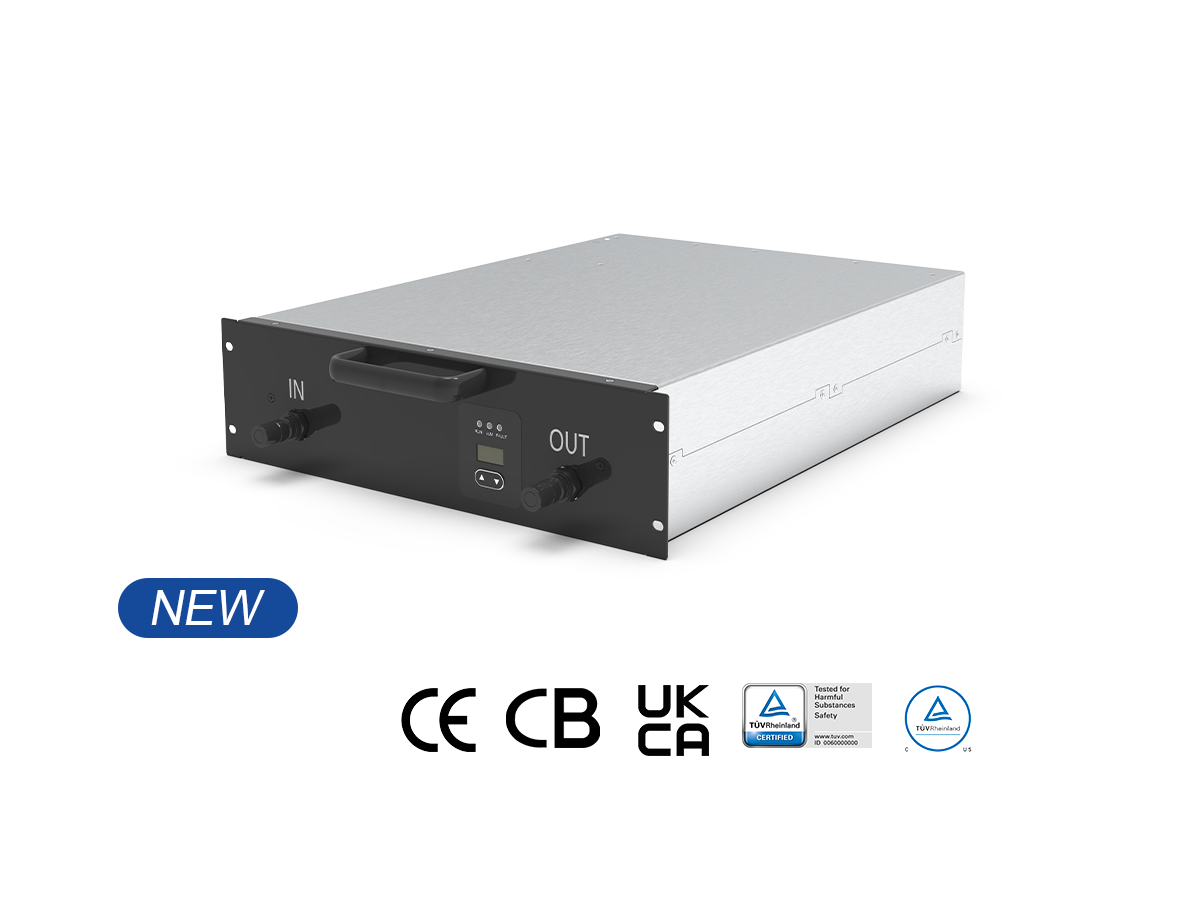

LCR100040A-40kW 1000V Liquid Cooling Charging Module
Excellent advantage
· Full liquid cooling technology
· Water-electricity separation design
· 300-1000V wide power range
· Full load efficiency exceeds 95.5%
Introduction：
LCR100040A is a high-frequency isolated liquid-cooled AC/DC charging module with core advantages such as ultra-wide voltage range, ultra-high full load liquid cooling operating temperature, super high efficiency. Additionally, liquid cooling for high protection, zero noise, high power density is the main features of this module. Widely applied in DC charging stations, suitable for harsh environments such as seaside areas, mining sites, and processing plants, as well as urban and residential areas.
Key features:
- Utilizes full liquid cooling technology to enhance heat dissipation efficiency
- Wide constant power range of 300-1000V enables fast charging for vehicles with different voltage levels
- Full-load efficiency exceeds 95.5%, ensuring high efficiency across the entire operating range and saving electricity
- Industry-leading volume design with a power density of 41W/in³, saving space and volume in charging station design
- Quick-plug design for water inlet and outlet, allowing for leak-free module replacement;
- Fully digital control with dual DSP design, enabling comprehensive digital control of the charging module
parameters
| Item | Specifications | |
| Basic Specifications | Dimensions | 340mm（H）×100mm（W）×470mm（D） |
| Weight | ≤ 28 kg | |
| Efficiency (full load) | >95.5% | |
| Standby Power Consumption | <13W+/-0.5W | |
| Cooling Mode | Liquid cooling | |
| Input Characteristics | Input Voltage | 260 ~ 530 VAC, 3-Phase+PE, 45~65Hz |
| Input Current | <80A | |
| Power Factor | ≥0.99 | |
| Output Characteristics | Output Power | 40KW |
| Voltage Range | 100Vdc～1000Vdc | |
| Current Range | 0A~133.3A | |
| Environmental Specifications | Operating Temperature | – 40℃～+75℃ output derating at above 60℃ |
| Storage Temperature | －40℃ ～ ＋ 75℃ | |
Download
LCR100040A Power Module Data Sheet
Details
Introduction：
LCR100040A is a high-frequency isolated liquid-cooled AC/DC charging module with core advantages such as ultra-wide voltage range, ultra-high full load liquid cooling operating temperature, super high efficiency. Additionally, liquid cooling for high protection, zero noise, high power density is the main features of this module. Widely applied in DC charging stations, suitable for harsh environments such as seaside areas, mining sites, and processing plants, as well as urban and residential areas.
Key features:
- Utilizes full liquid cooling technology to enhance heat dissipation efficiency
- Wide constant power range of 300-1000V enables fast charging for vehicles with different voltage levels
- Full-load efficiency exceeds 95.5%, ensuring high efficiency across the entire operating range and saving electricity
- Industry-leading volume design with a power density of 41W/in³, saving space and volume in charging station design
- Quick-plug design for water inlet and outlet, allowing for leak-free module replacement;
- Fully digital control with dual DSP design, enabling comprehensive digital control of the charging module
parameters
| Item | Specifications | |
| Basic Specifications | Dimensions | 340mm（H）×100mm（W）×470mm（D） |
| Weight | ≤ 28 kg | |
| Efficiency (full load) | >95.5% | |
| Standby Power Consumption | <13W+/-0.5W | |
| Cooling Mode | Liquid cooling | |
| Input Characteristics | Input Voltage | 260 ~ 530 VAC, 3-Phase+PE, 45~65Hz |
| Input Current | <80A | |
| Power Factor | ≥0.99 | |
| Output Characteristics | Output Power | 40KW |
| Voltage Range | 100Vdc～1000Vdc | |
| Current Range | 0A~133.3A | |
| Environmental Specifications | Operating Temperature | - 40℃～+75℃ output derating at above 60℃ |
| Storage Temperature | －40℃ ～ ＋ 75℃ | |
How do liquid cooling modules work?
The Liquid Cooling Charging Module from Winline Technology uses advanced liquid cooling to manage heat generated during ultra-fast charging. As a 40kW EV DC charger module compatible with 1000V EV DC charger modules, it’s designed for ultra fast charging stations with high-frequency charging needs.
Coolant circulates through the connector and cables, quickly dissipating heat from high currents to ensure safe, efficient operation. This liquid-cooled charging module supports reliable liquid cooled ultra-fast charging, extending equipment life and improving user experience in demanding environments.
