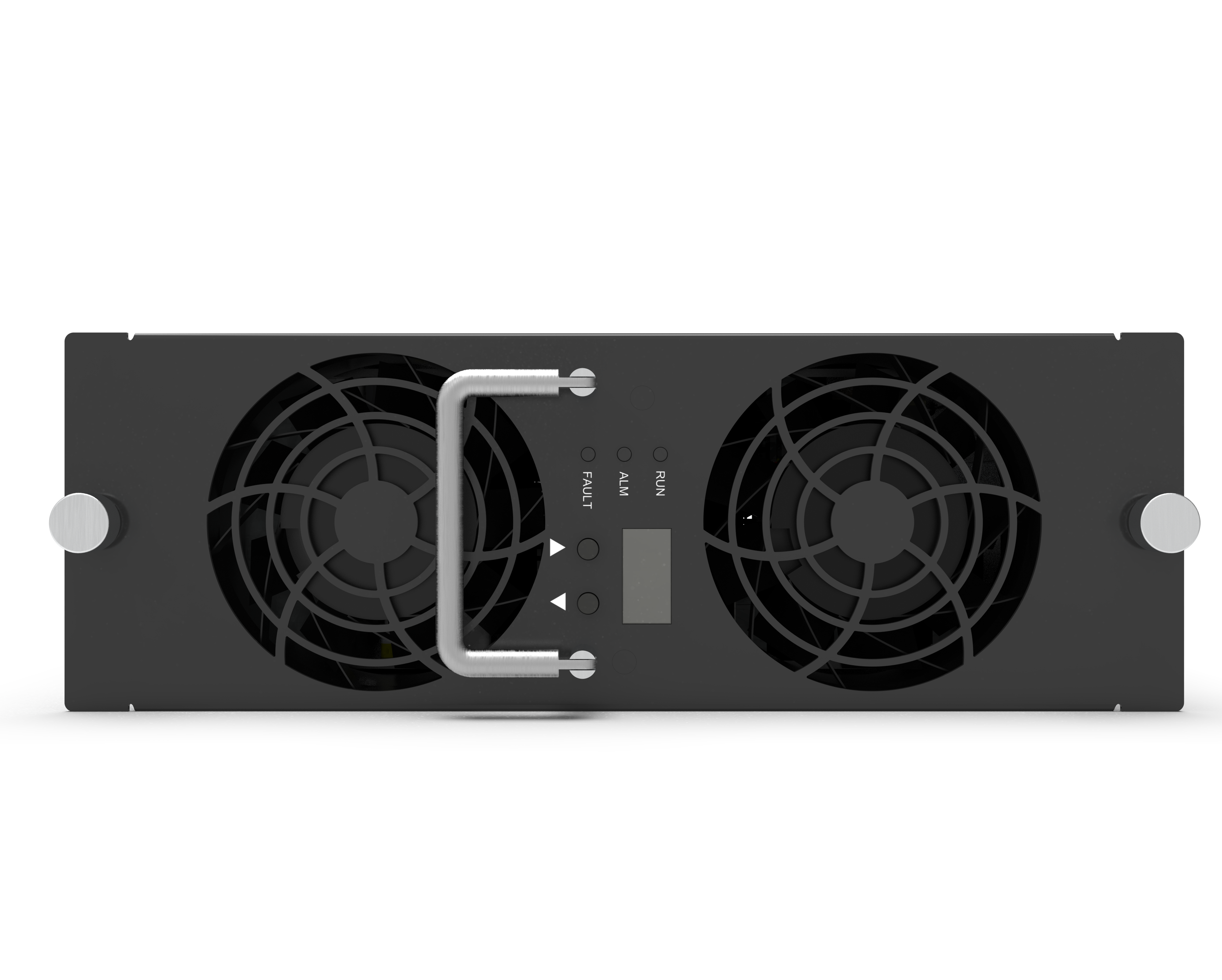

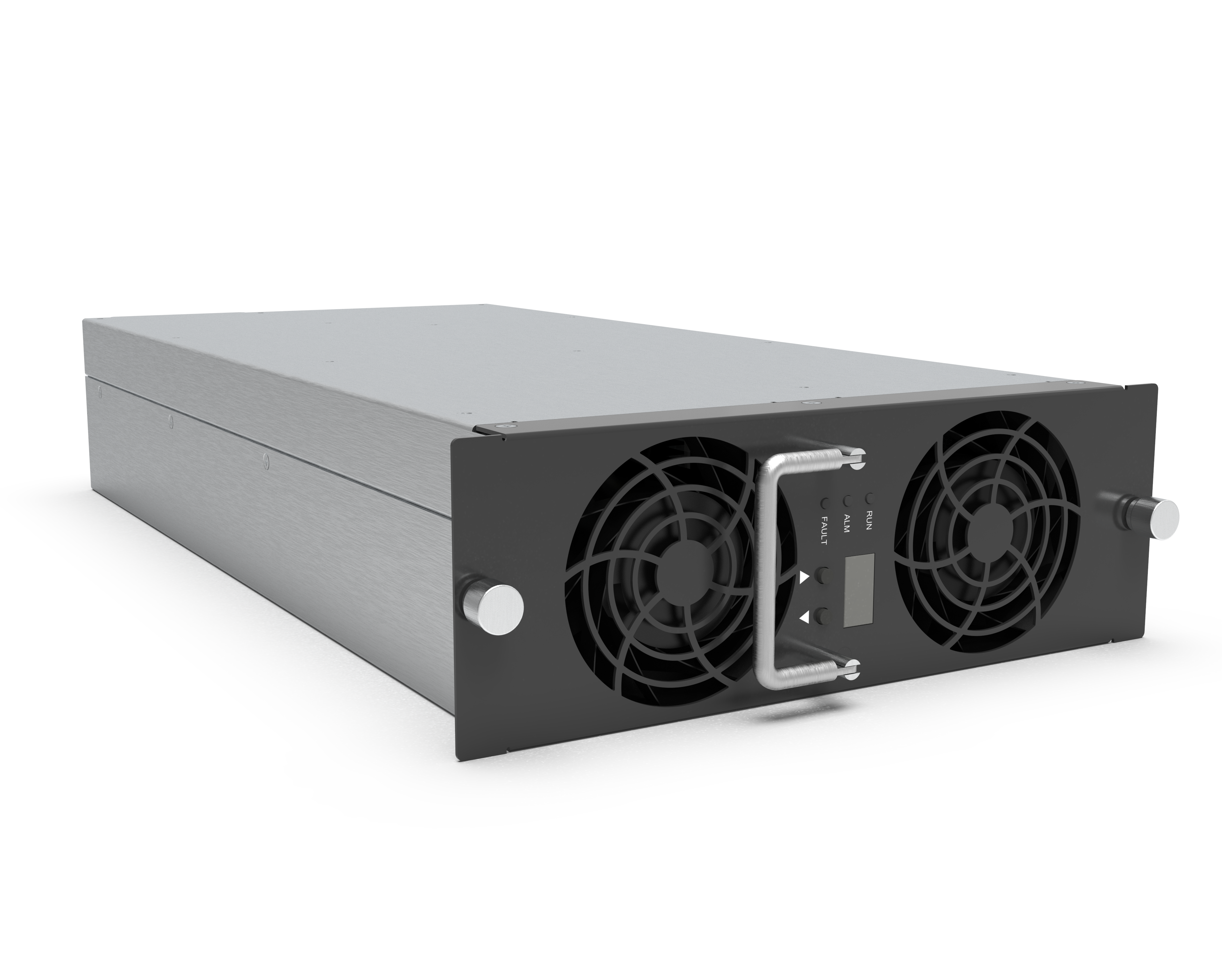

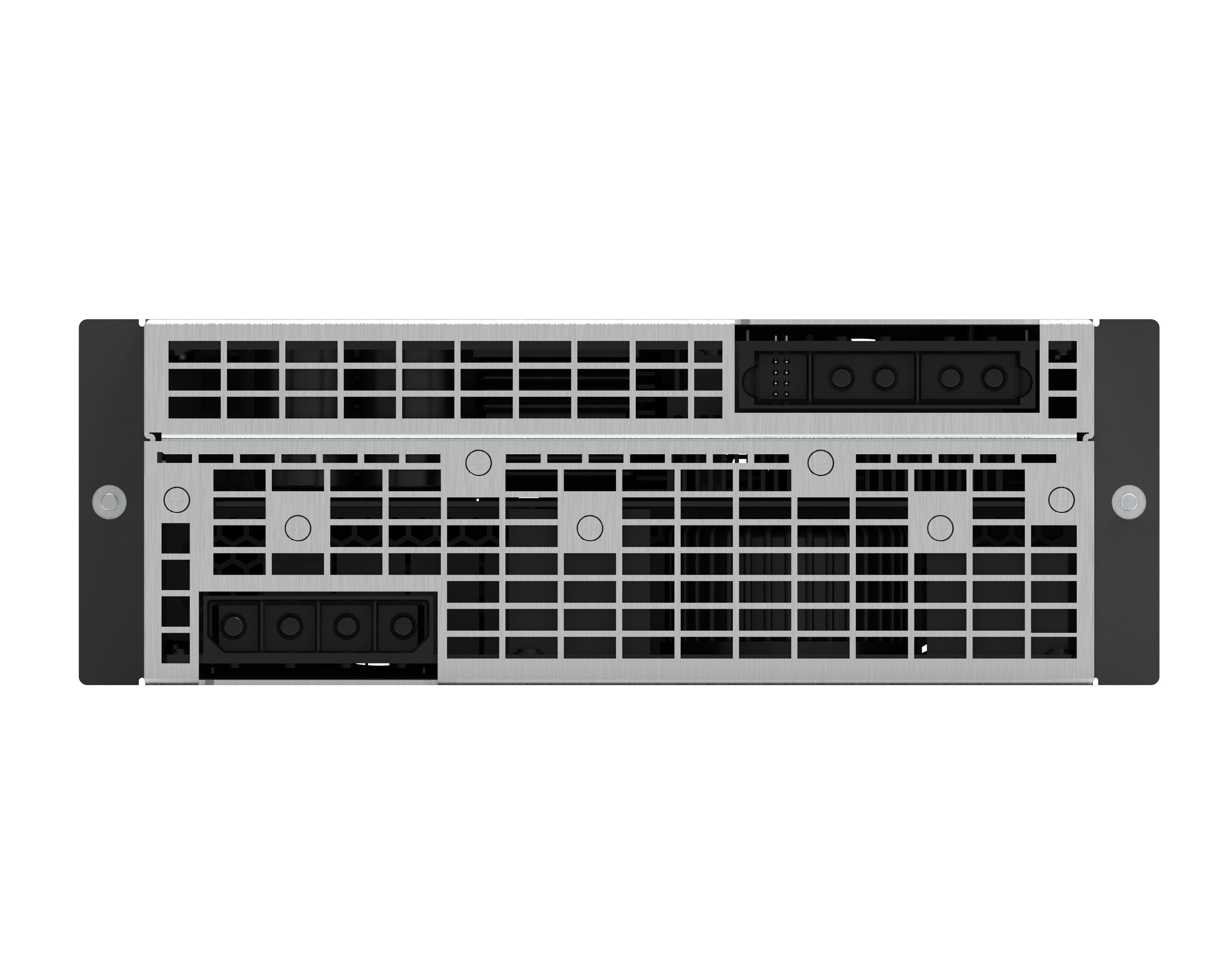

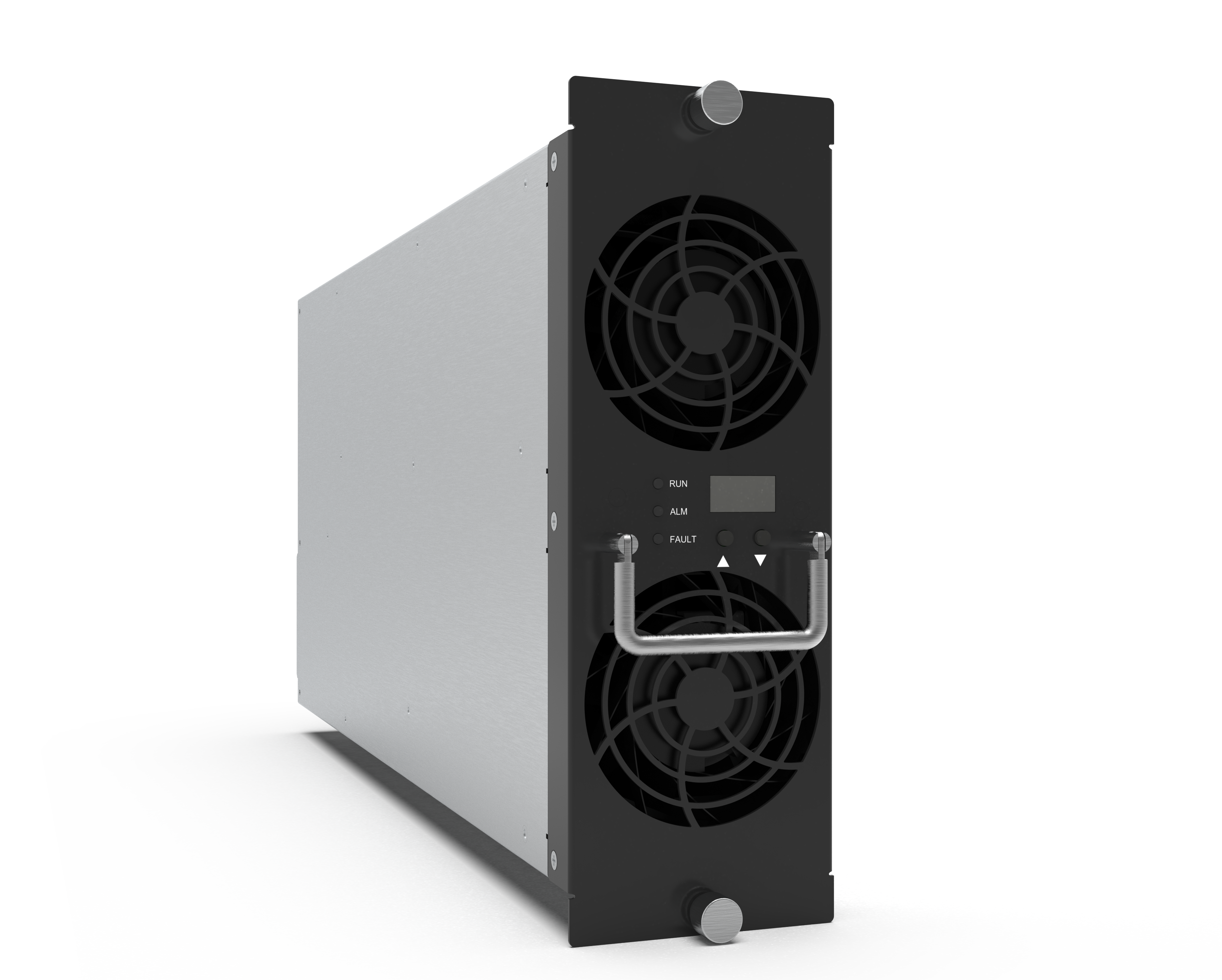

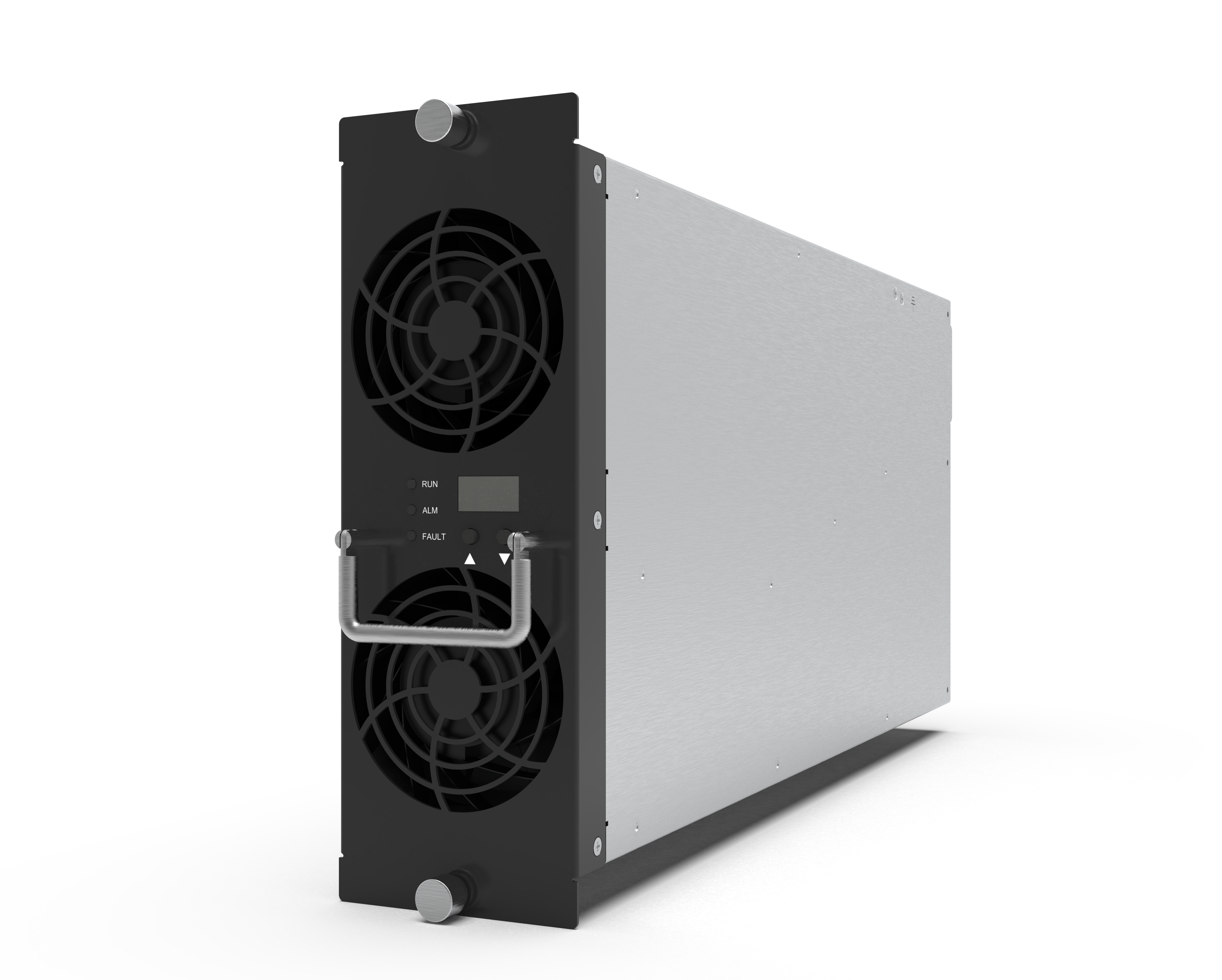

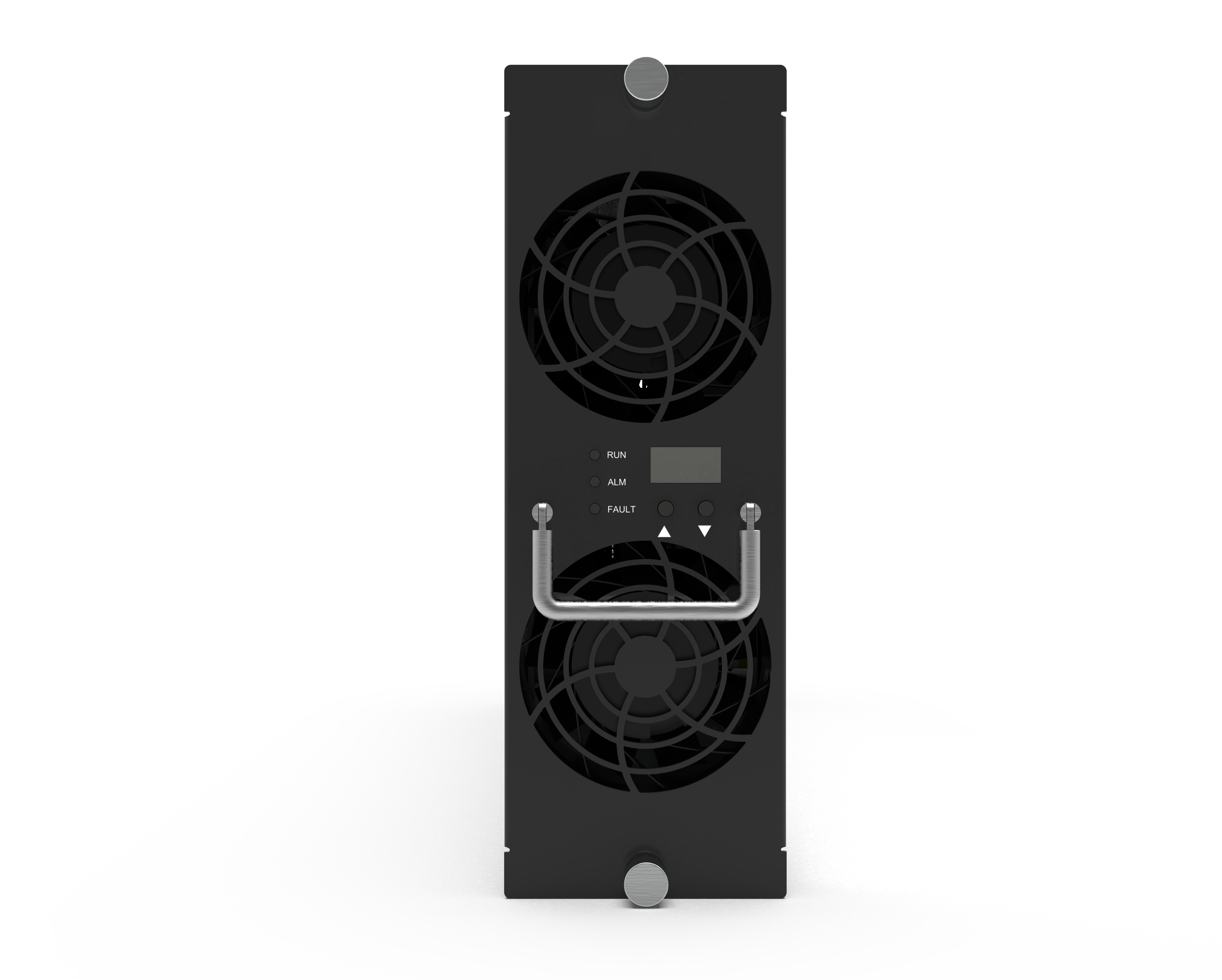

UXR1K030H 30kW1000V High-Power Density Charging Module with National Grid Dimensions
Key Features:
- Ultra-wide output voltage range of 50-1000Vdc;
- Ultra-wide constant power output range of 300-1000V at 30kW;
- No current retractionin low voltage areas for faster charging;
- Built-in residual voltage discharge circuit to reduce system cost and enhance reliability;
INTRODUCTION
The UXR1K030H is a high-power density, fully potted charging module designed for ultra-wide constant power voltage range, ultra-wide voltage range, high full-load operating temperature, and superior efficiency. It complies with National Grid standards, meets the constant power requirements of the Southern Grid, and offers significant energy-saving and environmental protection benefits.
EXCELLENT ADVANTAGES
- Super Standby Mode
- Zero Reactive Power
- Full Potted Protection
- Full-Load Working during Ultra-high Temperatureof 55
PARAMETERS
Dimensions | 84mm (H) ×218 mm (W) ×459mm (D) |
Weight | ≤17 kg |
Input Voltage | 260Vac~475Vac, 3P+PE |
Input Current | <60A |
Output Power | 30kW@Output voltage ≥300Vdc |
Voltage Range | 50Vdc~1000Vdc, default value: 200Vdc |
Current Range | 0A~100A |
Download
UXR1K030H data sheet
Details
INTRODUCTION
The UXR1K030H is a high-power density, fully potted charging module designed for ultra-wide constant power voltage range, ultra-wide voltage range, high full-load operating temperature, and superior efficiency. It complies with National Grid standards, meets the constant power requirements of the Southern Grid, and offers significant energy-saving and environmental protection benefits.
EXCELLENT ADVANTAGES
- Super Standby Mode
- Zero Reactive Power
- Full Potted Protection
- Full-Load Working during Ultra-high Temperatureof 55
PARAMETERS
Dimensions | 84mm (H) ×218 mm (W) ×459mm (D) |
Weight | ≤17 kg |
Input Voltage | 260Vac~475Vac, 3P+PE |
Input Current | <60A |
Output Power | 30kW@Output voltage ≥300Vdc |
Voltage Range | 50Vdc~1000Vdc, default value: 200Vdc |
Current Range | 0A~100A |
