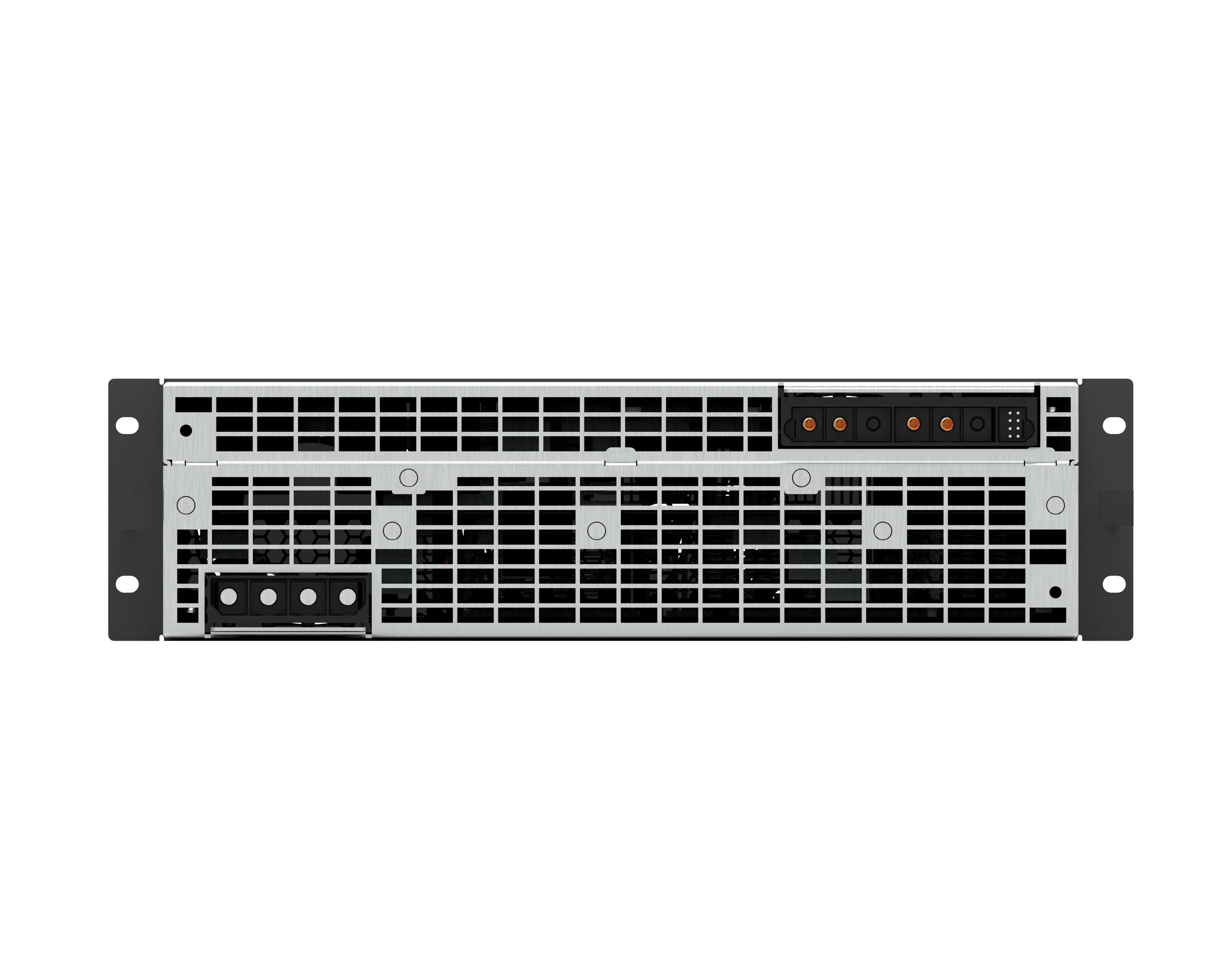

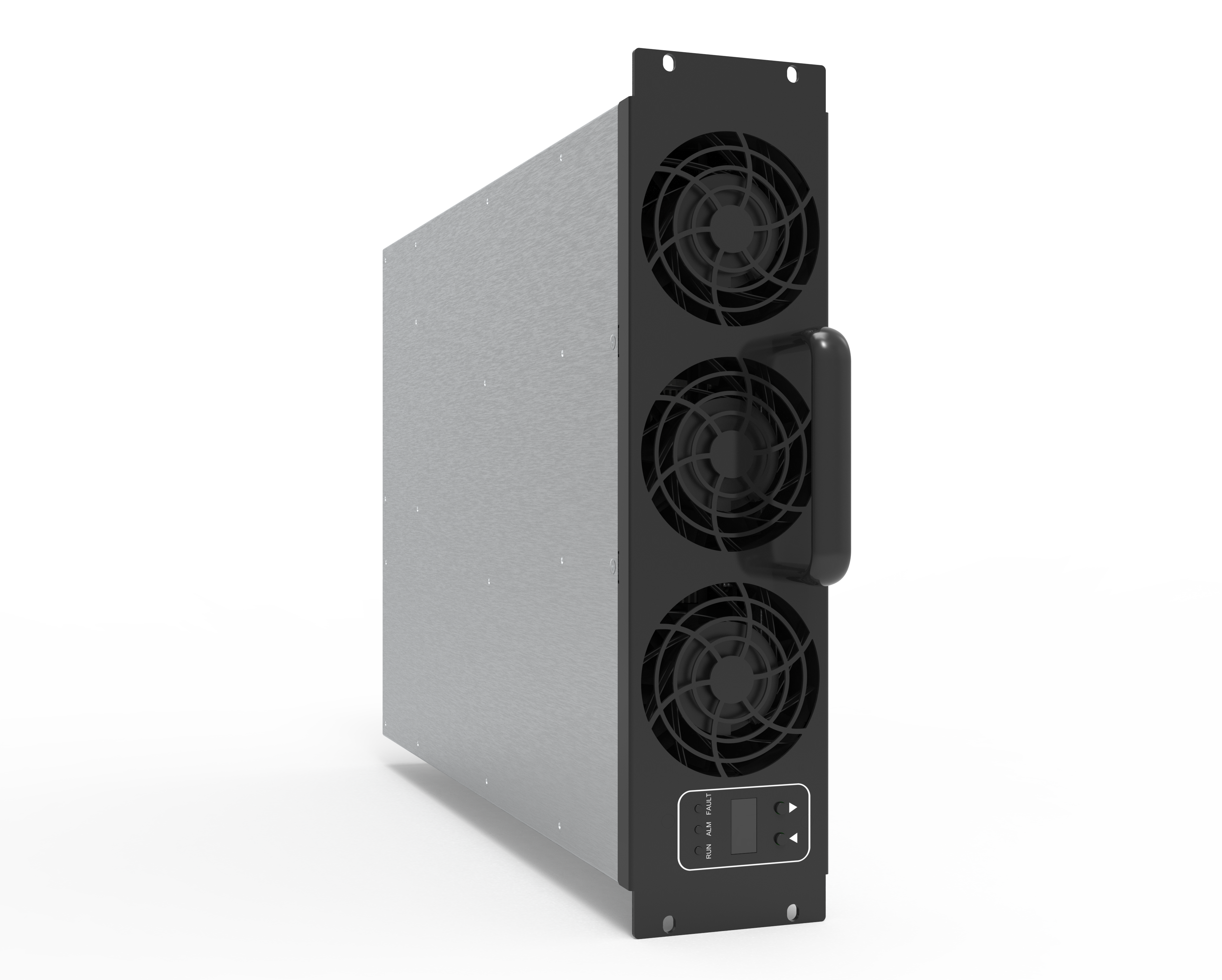

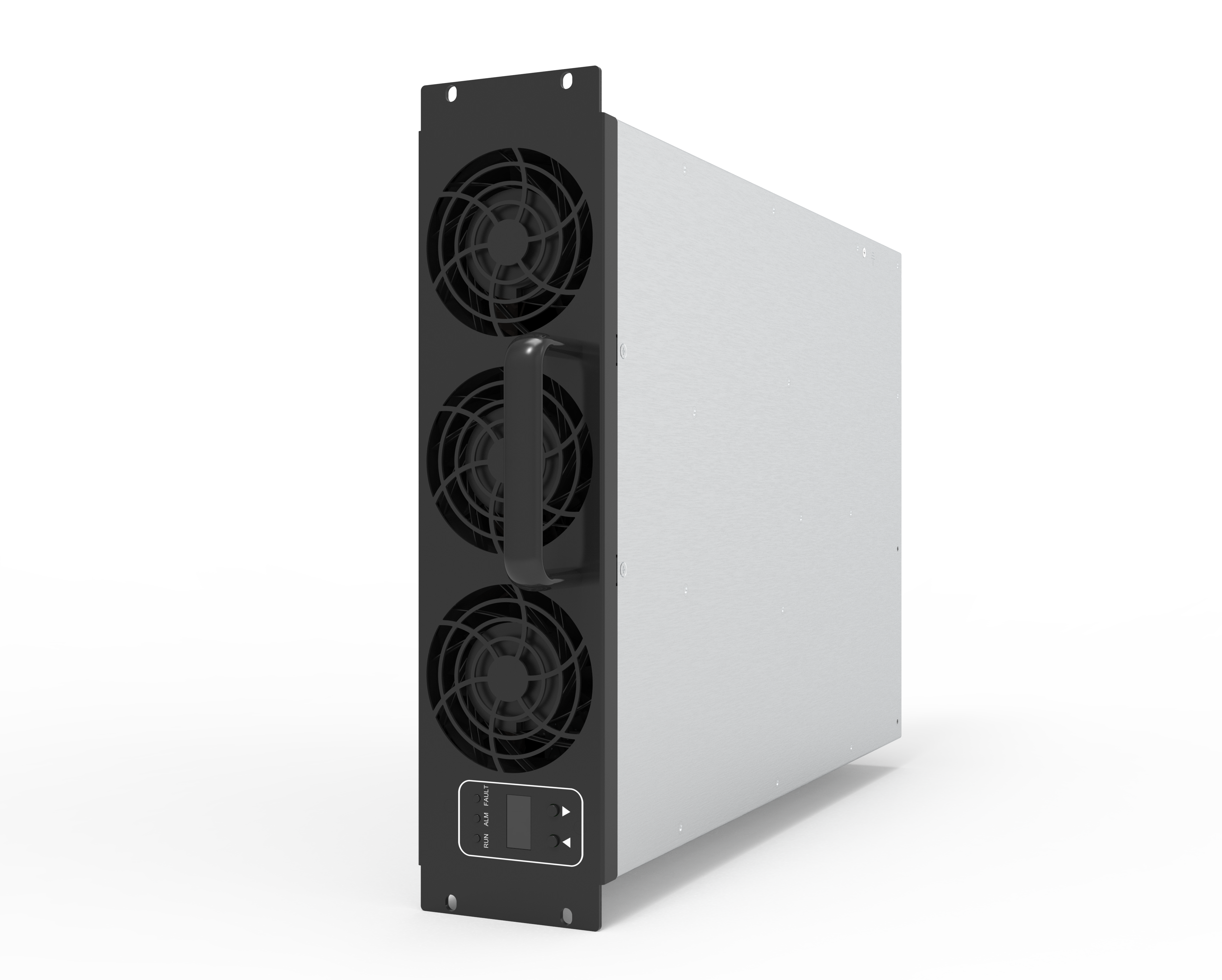

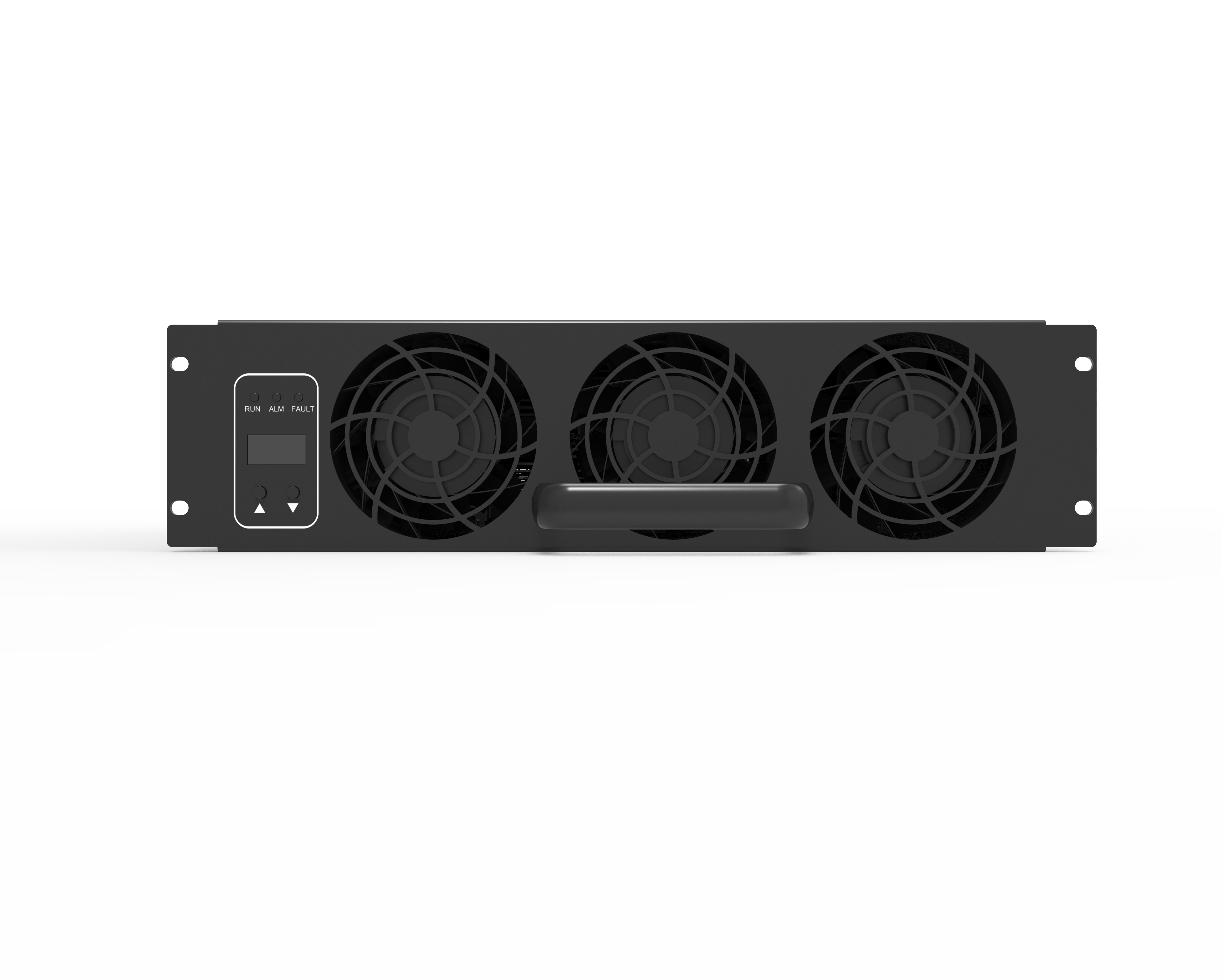

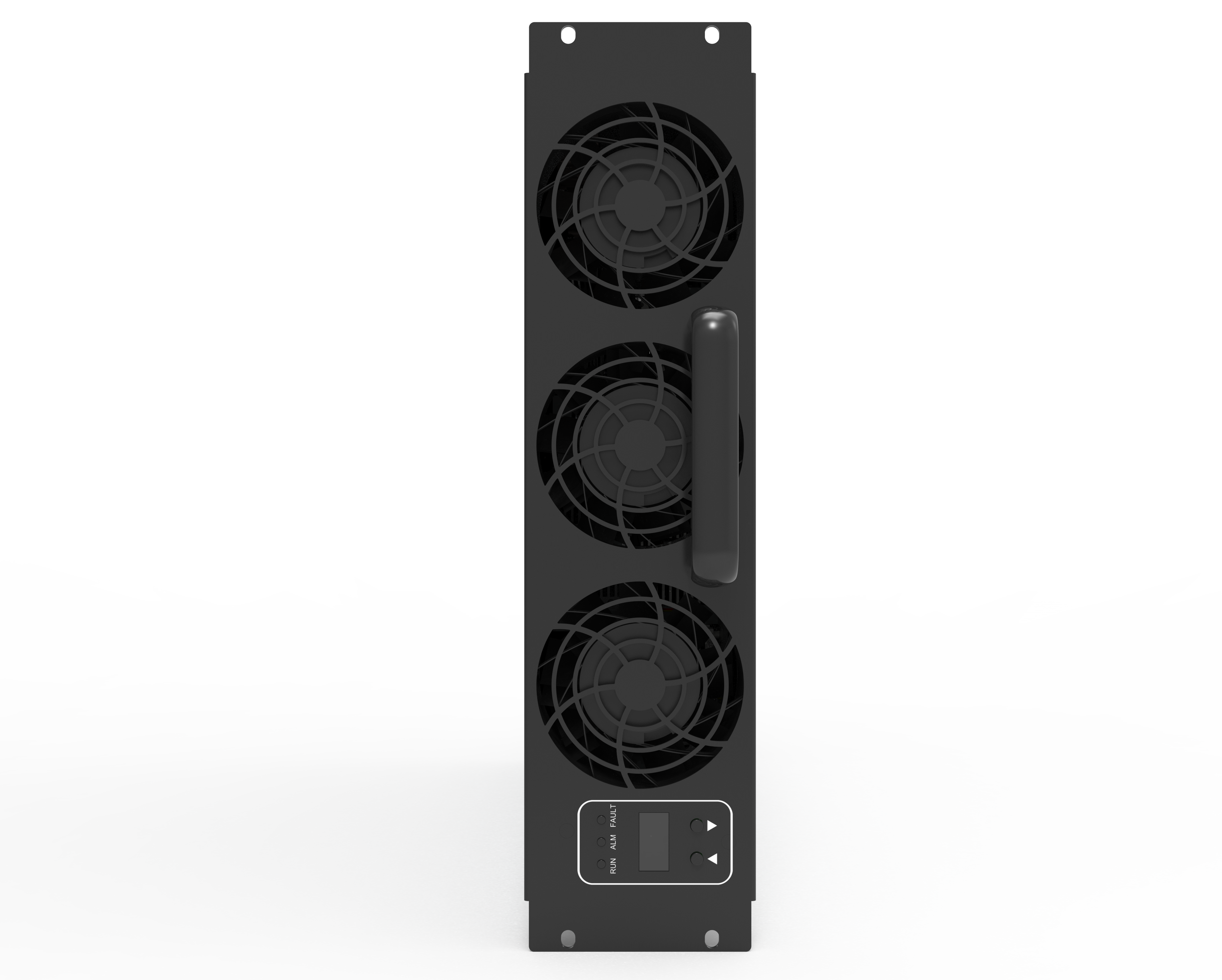

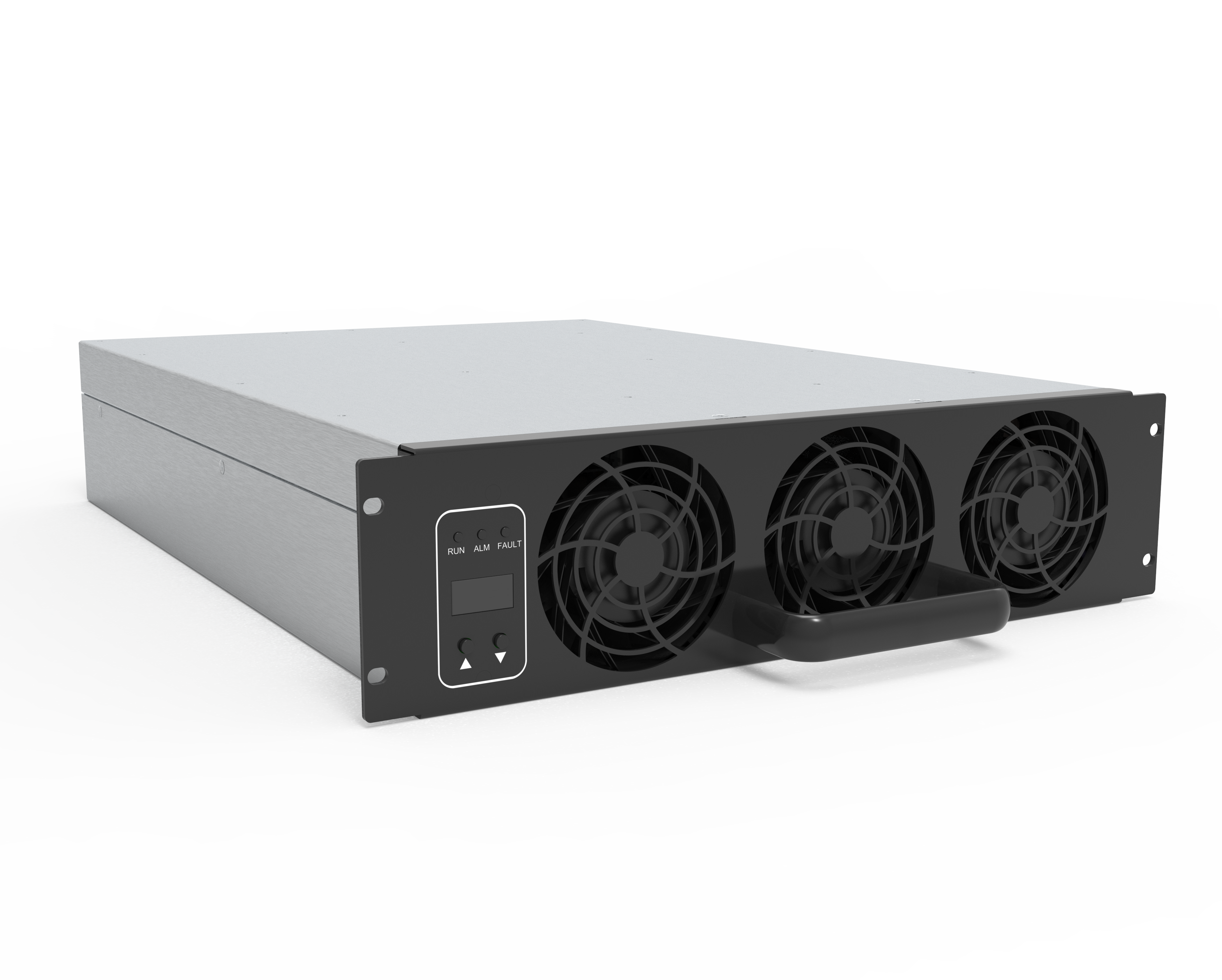

UXR100040S 40kW 1000V High-Power Density Fully Potted Power Module
Key Features:
- Ultra-wide output voltage range of 50-1000Vdc;
- Constant power output at 40kW from 300-1000V;
- No current retract in low voltage areas;
- Wide full-power temperature range (-40°C to +55°C);
- Built-in residual voltage discharge circuit,reduces system costs and enhances reliability.
INTRODUCTION
The UXR100040S is a high-power density, fully potted charging module. It features an ultra-wide voltage range, high full-load operating temperature, and superior efficiency. The module is designed for high reliability, high power factor, low noise, and low standby power consumption.
EXCELLENT ADVANTAGES
- Super Standby Mode
- Zero Reactive Power
- Fully Potted Protection
- High Power Density 59.7W/in³
PARAMETERS | |
Dimensions | 84mm(H) ×300mm(W) ×395mm (D) |
Weight | ≤17 kg |
Input Voltage | 285Va ~ 475Vac , 3P+PE |
Input Current | <76A |
Output Power | 40kW@output voltage ≥300Vdc |
Voltage Range | 50Vdc~1000Vdc, default value: 200Vdc |
Current Range | 0A~133.3A |
Download
UXR100040S data sheet
Details
INTRODUCTION
The UXR100040S is a high-power density, fully potted charging module. It features an ultra-wide voltage range, high full-load operating temperature, and superior efficiency. The module is designed for high reliability, high power factor, low noise, and low standby power consumption.
EXCELLENT ADVANTAGES
- Super Standby Mode
- Zero Reactive Power
- Fully Potted Protection
- High Power Density 59.7W/in³
PARAMETERS | |
Dimensions | 84mm(H) ×300mm(W) ×395mm (D) |
Weight | ≤17 kg |
Input Voltage | 285Va ~ 475Vac , 3P+PE |
Input Current | <76A |
Output Power | 40kW@output voltage ≥300Vdc |
Voltage Range | 50Vdc~1000Vdc, default value: 200Vdc |
Current Range | 0A~133.3A |
