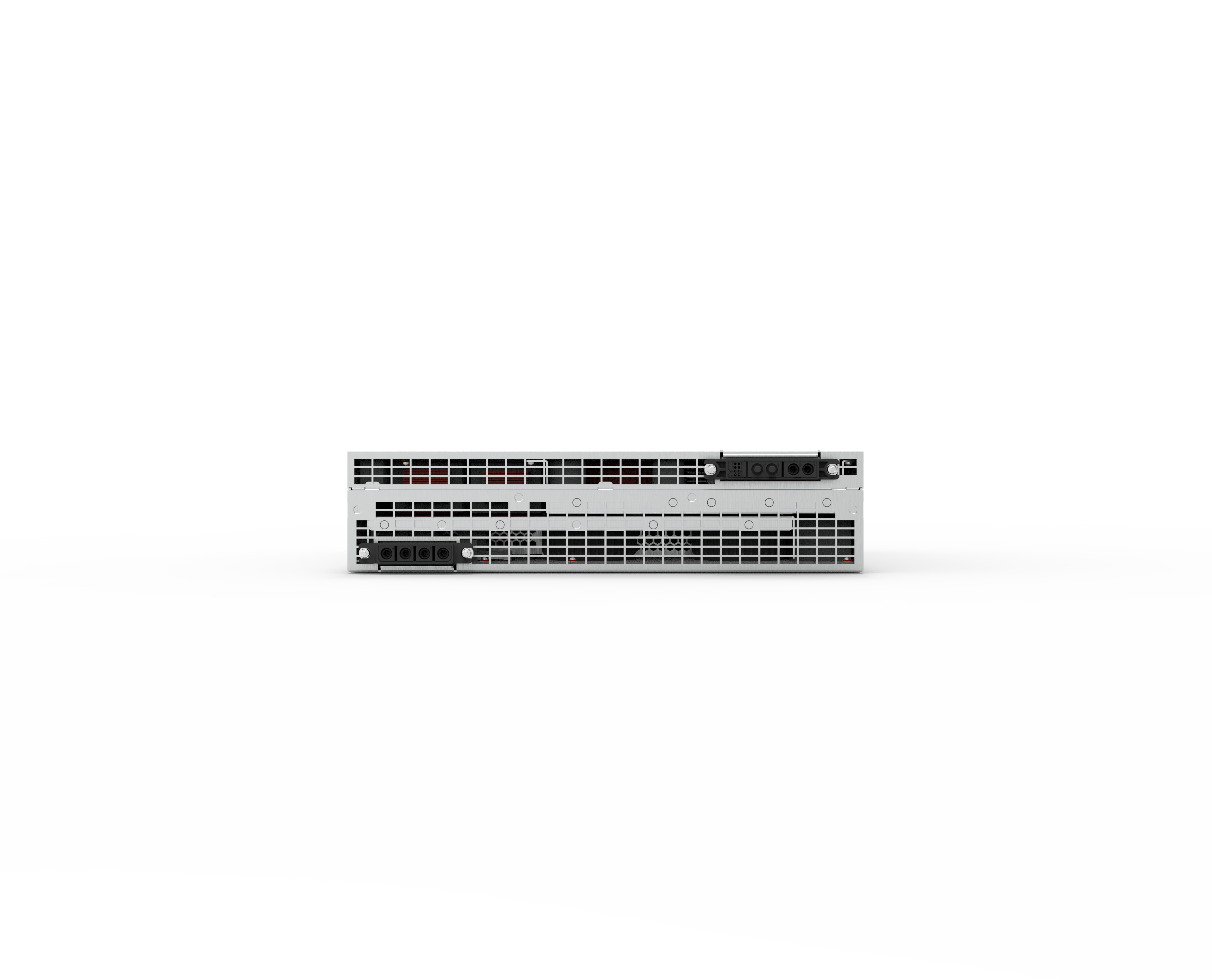

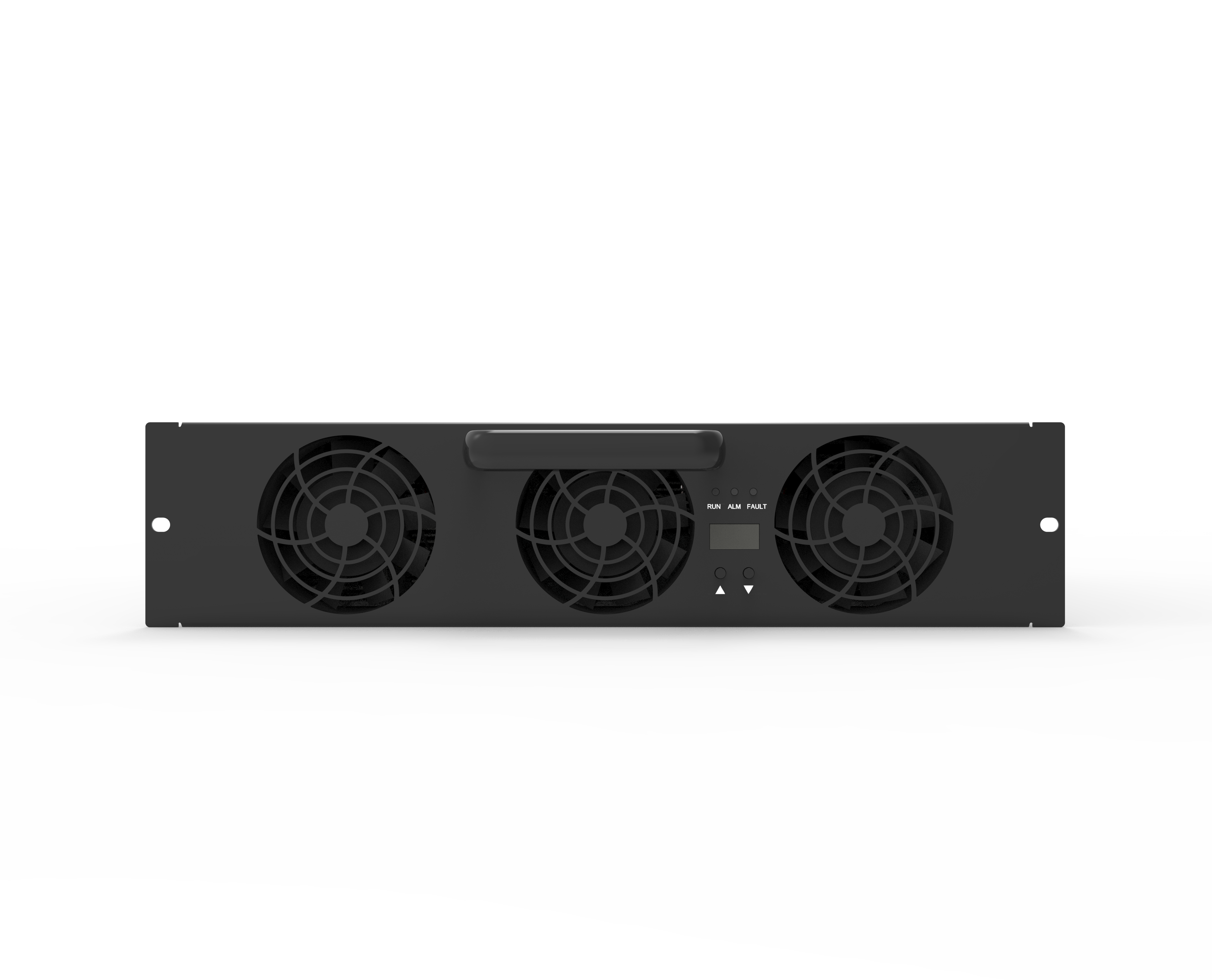

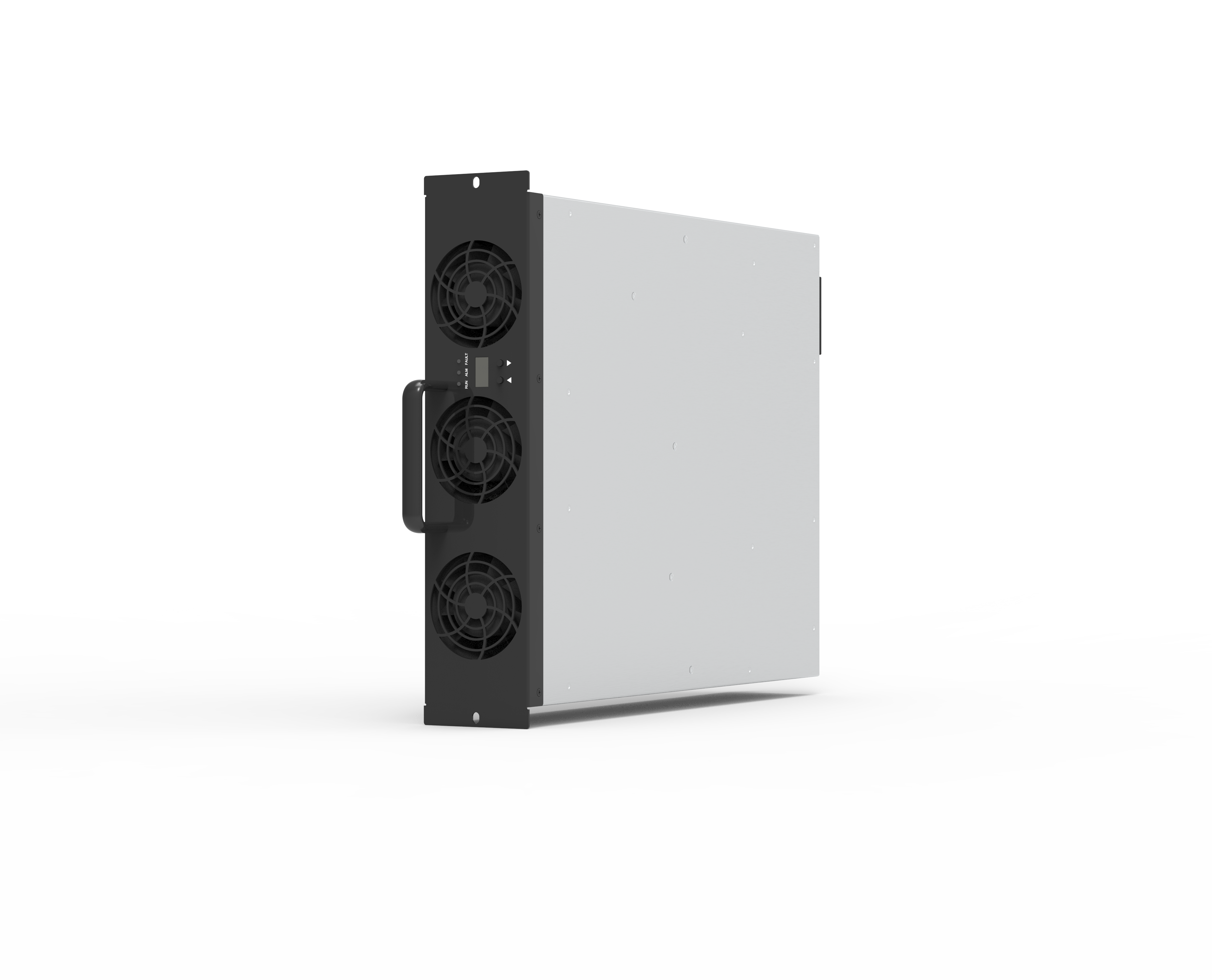

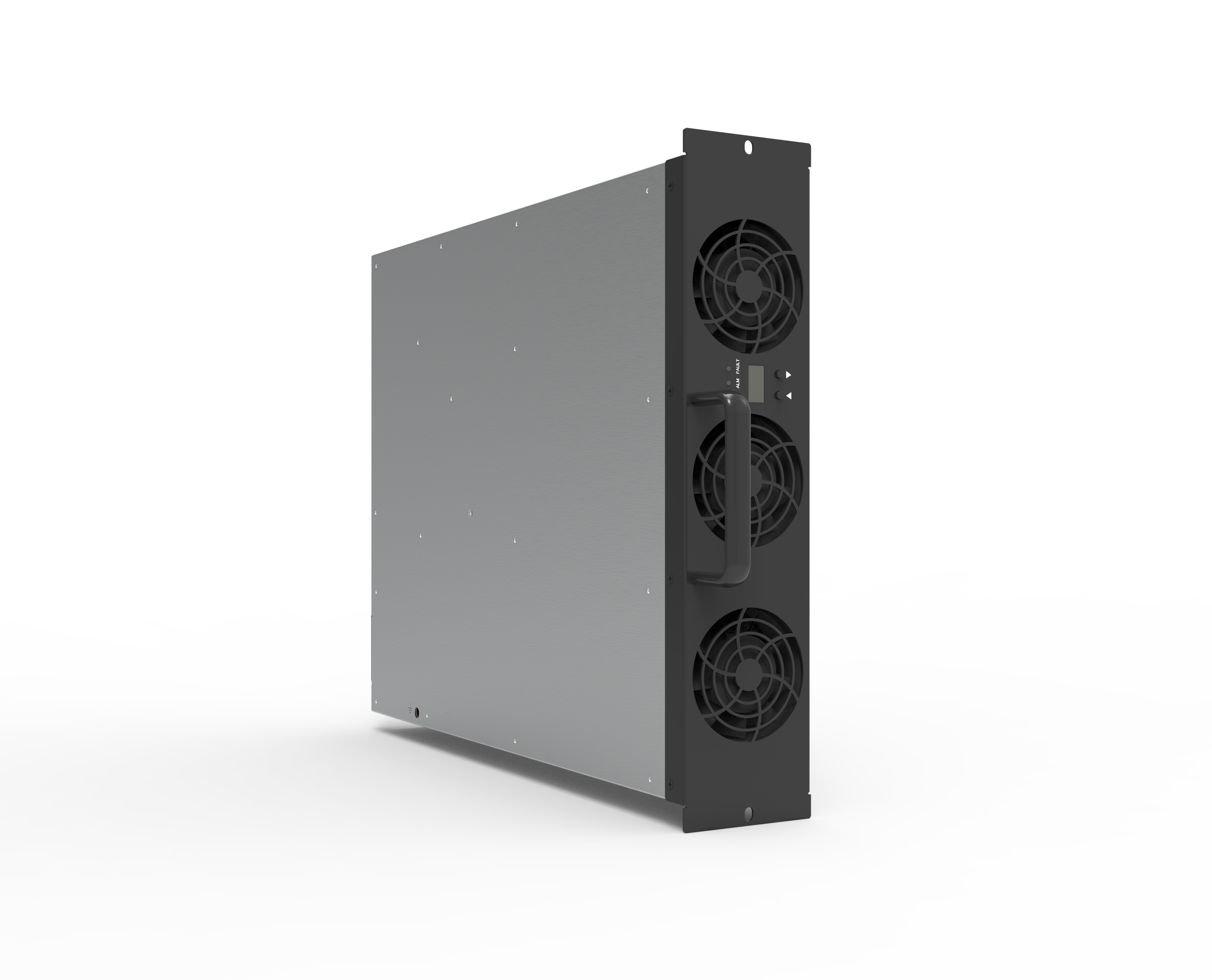

UXR100040G 40kW 1000V Class B UL/CE High Protection Power Module
Key features:
- Ultra-wide output voltage range of 50-1000Vdc;
- Ultra-wide constant power output range of 300-1000V at 40kW;
- No current retractioninlow voltage areas;
- Built-in residual voltage discharge circuit;
- Complies with CE, UL, and UKCA certification requirements.;
- High power density (46.7W/in³), Industry-leading compact design;
INTRODUCTION
The UXR100040G is a fully potted charging module designed to meet the IEC 61851-23:2023 standard. It features ultra-high full-load operating temperature, ultra-wide constant power range, high power factor, high reliability, high power density, wide output voltage range, low noise, low standby power consumption, and excellent EMC performance.
EXCELLENT ADVANTAGES
- High Efficiency (96.8%)
- Full-Load Working during Ultra-high Temperature:55℃
- Fully Potted Protection
- EMC Class B Compliance
PARAMETERS | |
Dimensions | 85mm (H) ×360 mm (W) ×459mm (D) |
Weight | ≤20 kg |
Input Voltage | 260Vac~530Vac , 3P+PE |
Input Current | <80A |
Output Power | 40kW@Output voltage ≥300Vdc |
Voltage Range | 50Vdc~1000Vdc, the default value: 200Vdc |
Current Range | 0A~133.3A |
Download
UXR100040G data sheet
Details
INTRODUCTION
The UXR100040G is a fully potted charging module designed to meet the IEC 61851-23:2023 standard. It features ultra-high full-load operating temperature, ultra-wide constant power range, high power factor, high reliability, high power density, wide output voltage range, low noise, low standby power consumption, and excellent EMC performance.
EXCELLENT ADVANTAGES
- High Efficiency (96.8%)
- Full-Load Working during Ultra-high Temperature:55℃
- Fully Potted Protection
- EMC Class B Compliance
PARAMETERS | |
Dimensions | 85mm (H) ×360 mm (W) ×459mm (D) |
Weight | ≤20 kg |
Input Voltage | 260Vac~530Vac , 3P+PE |
Input Current | <80A |
Output Power | 40kW@Output voltage ≥300Vdc |
Voltage Range | 50Vdc~1000Vdc, the default value: 200Vdc |
Current Range | 0A~133.3A |
