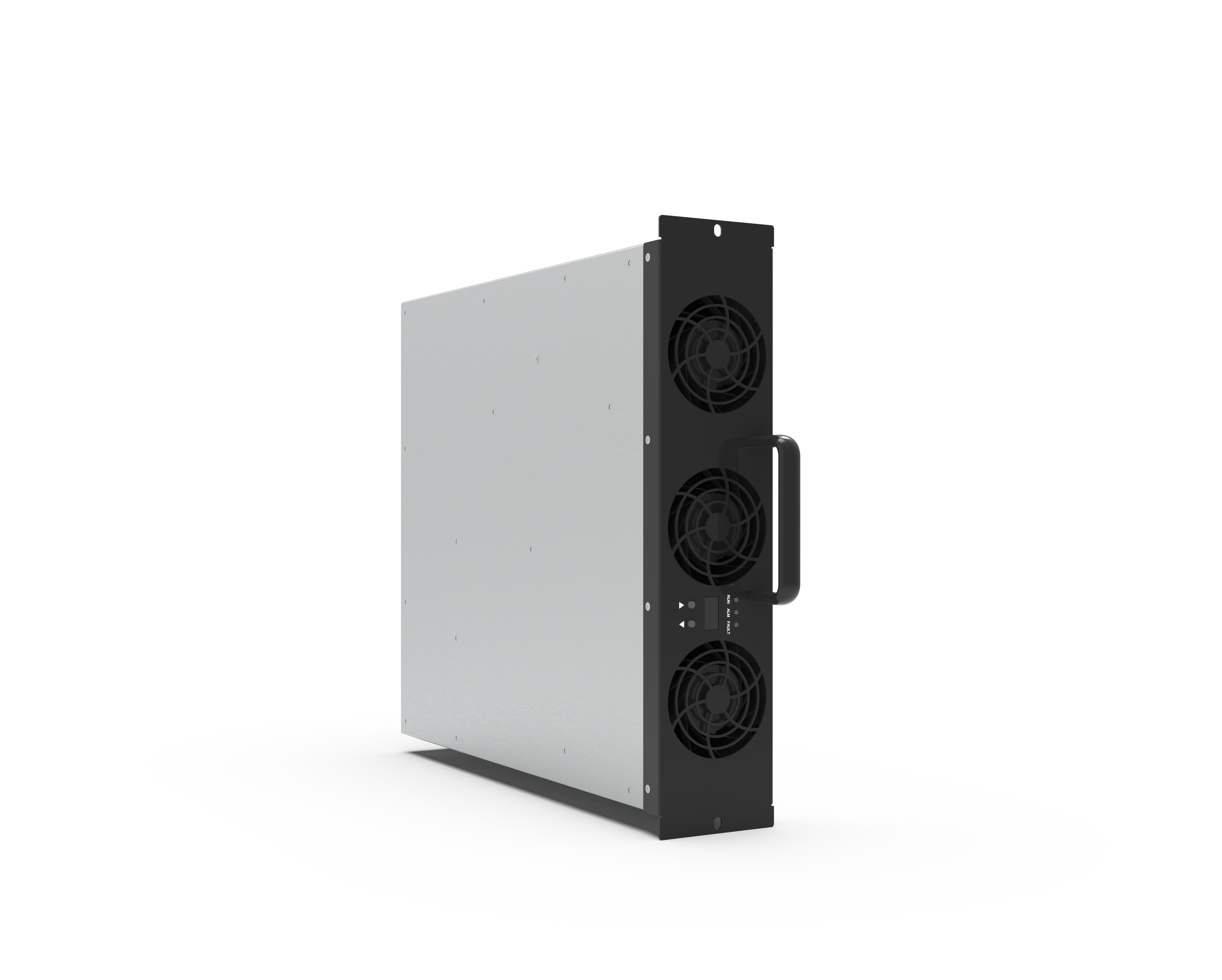

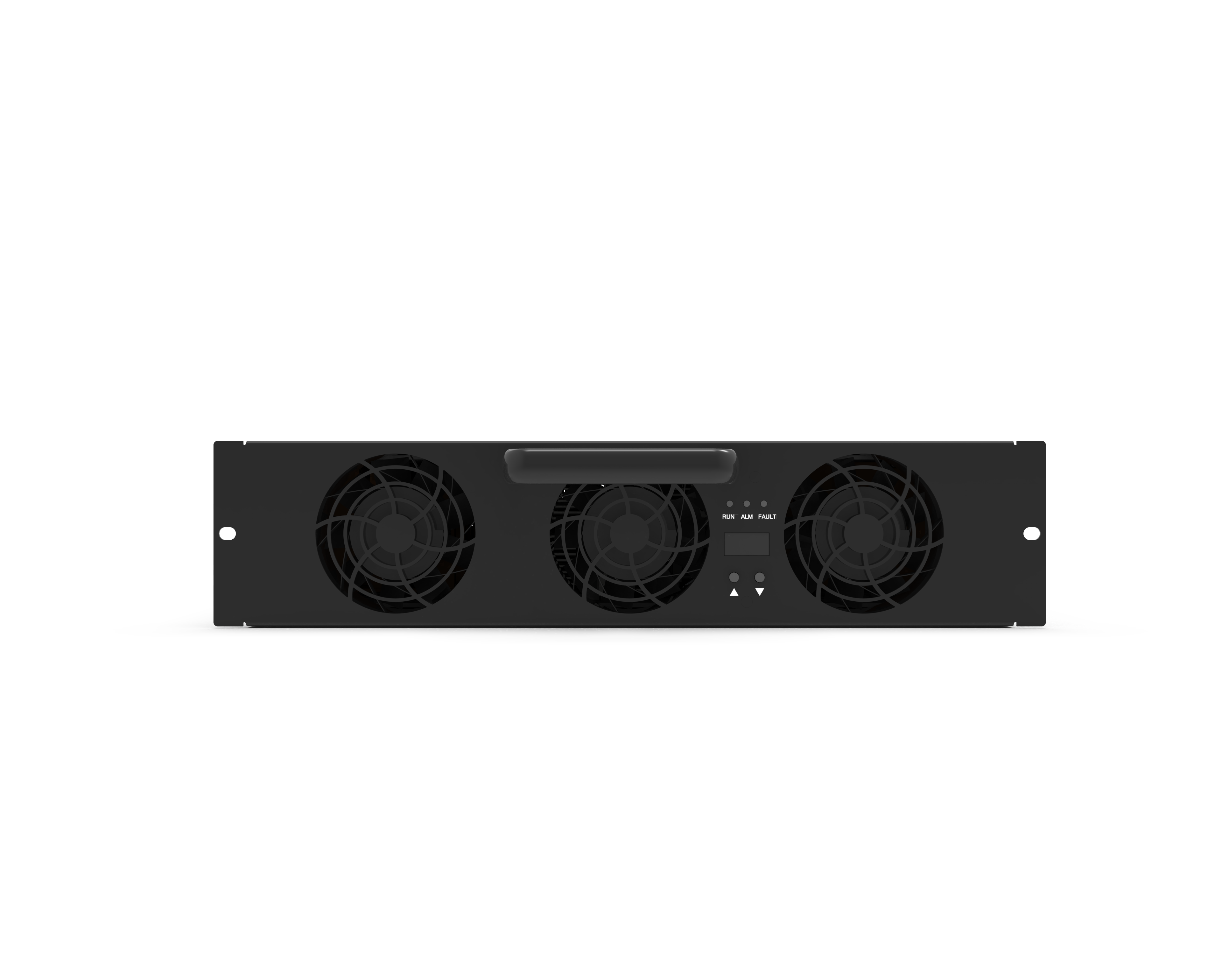

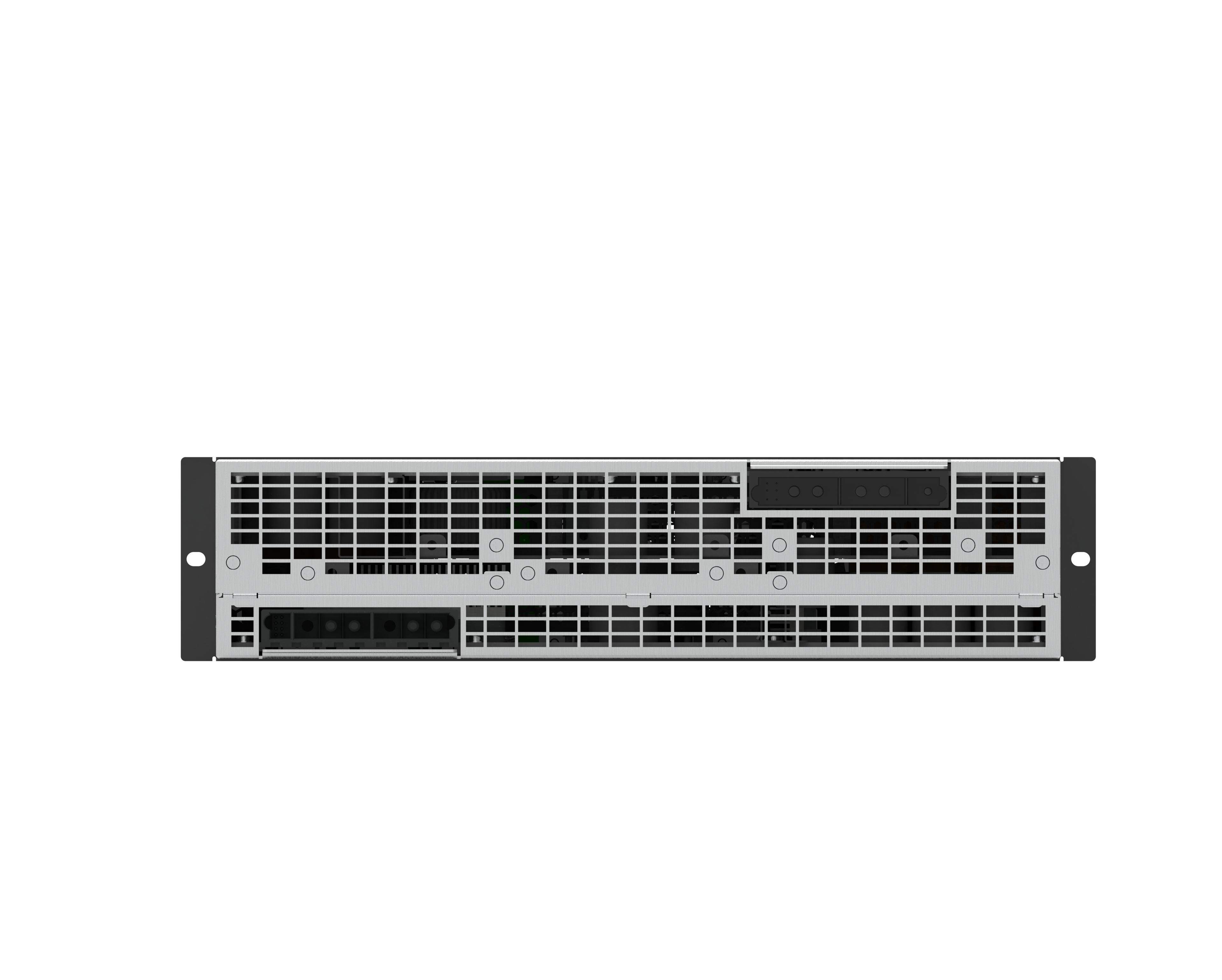

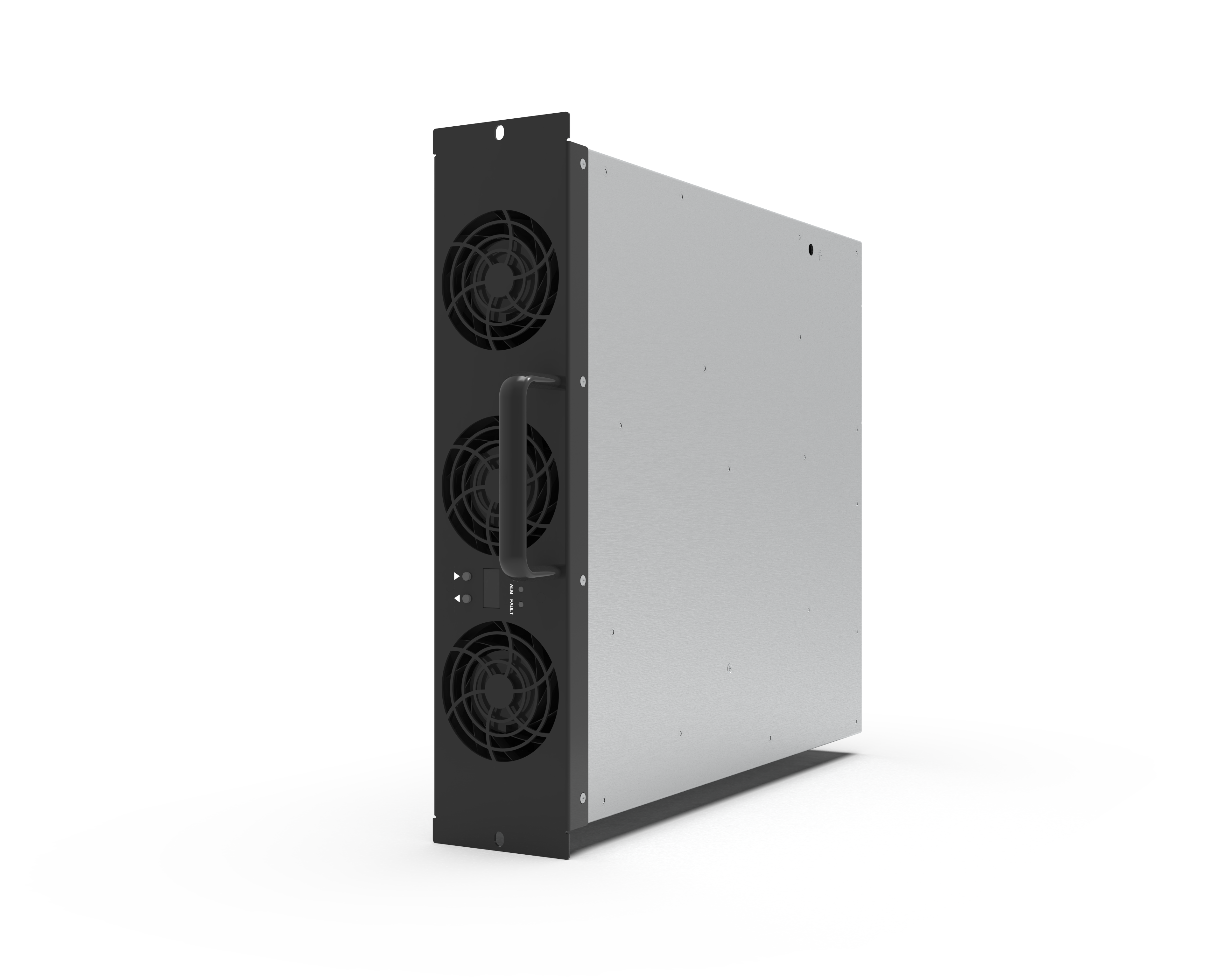

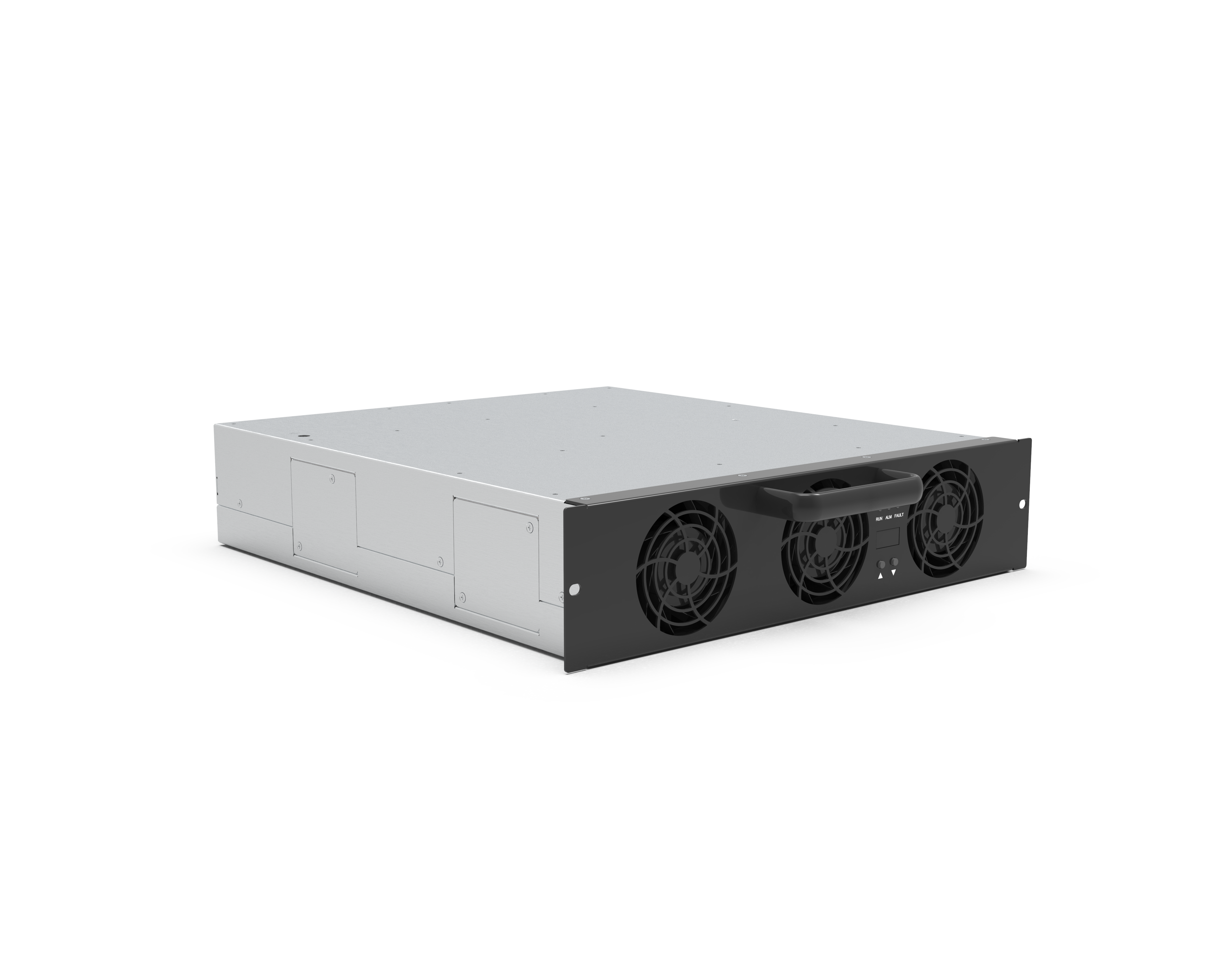

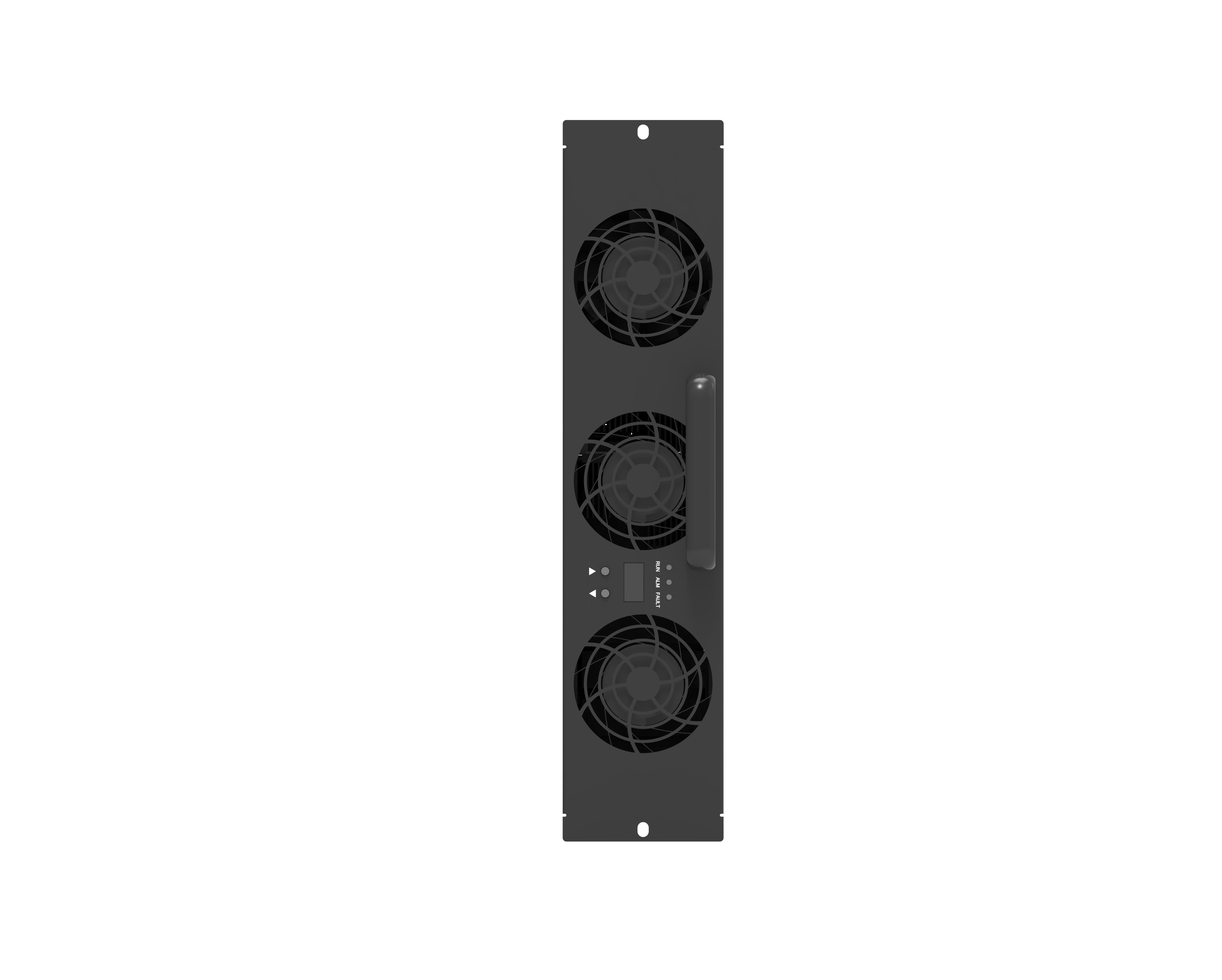

UXC150030 40kW1500V Isolated Unidirectional DC/DC Power Module
Key Features:
- full load working temperature range-40~55℃;
- UHV DC input / output scenario application;
- 51.4W/in³ High power density, saving space;
- Fully SiC design for high efficiency across the entire range
- Built-in high-frequency isolation transformer for enhanced safety and reliability
- Fully potted protection greatly improve reliability, lifespan, and environmental adaptability
INTRODUCTION
The UXC150030 is a high-voltage isolated unidirectional DC/DC power module. It features an ultra-wide voltage range, high full-load operating temperature, and high efficiency. The module also boasts high protection and power density. It is widely used in applications such as EV charging, photovoltaic power generation systems, energy storage systems, urban rail transit, and industrial equipment that require ultra-high voltage DC input/output.
EXCELLENT ADVANTAGES
- Ultra-wide dual-end voltage range of 200V-1500Vdc
- High conversion efficiency of 98.5%
- Electromagnetic compatibility (EMC) Class B compliance
- Wide constant power range
PARAMETERS | |
Dimensions | 85mm (H)×360 mm (W)×454mm (D) |
Weight | ≤17 kg |
Input Voltage | 200 Vac~1500 Vac , DC input+PE |
Input Current | <80A |
Output Power | 40kW@Output voltage≥400Vdc |
Output Voltage Range | 200Vdc~1500Vdc, default value: 200Vdc |
Output Current Range | 0A~100A |
Download
UXC150030 data sheet
Details
INTRODUCTION
The UXC150030 is a high-voltage isolated unidirectional DC/DC power module. It features an ultra-wide voltage range, high full-load operating temperature, and high efficiency. The module also boasts high protection and power density. It is widely used in applications such as EV charging, photovoltaic power generation systems, energy storage systems, urban rail transit, and industrial equipment that require ultra-high voltage DC input/output.
EXCELLENT ADVANTAGES
- Ultra-wide dual-end voltage range of 200V-1500Vdc
- High conversion efficiency of 98.5%
- Electromagnetic compatibility (EMC) Class B compliance
- Wide constant power range
PARAMETERS | |
Dimensions | 85mm (H)×360 mm (W)×454mm (D) |
Weight | ≤17 kg |
Input Voltage | 200 Vac~1500 Vac , DC input+PE |
Input Current | <80A |
Output Power | 40kW@Output voltage≥400Vdc |
Output Voltage Range | 200Vdc~1500Vdc, default value: 200Vdc |
Output Current Range | 0A~100A |
