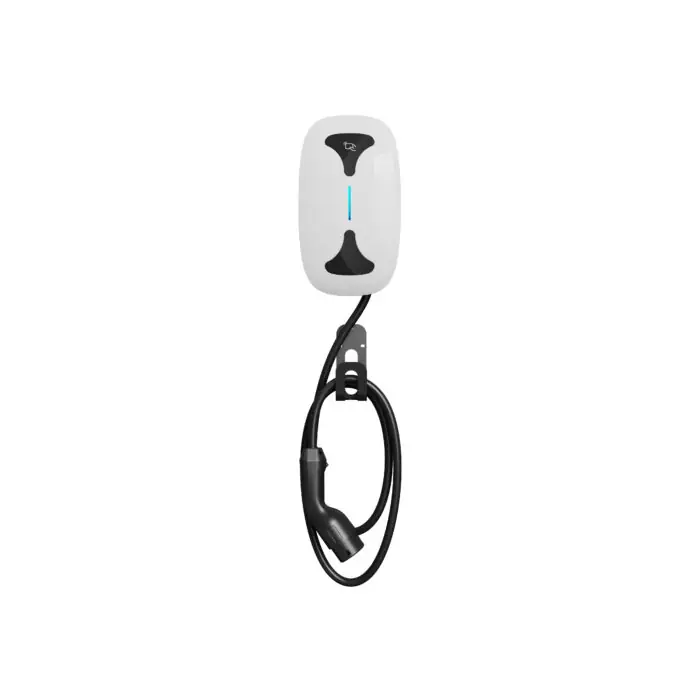

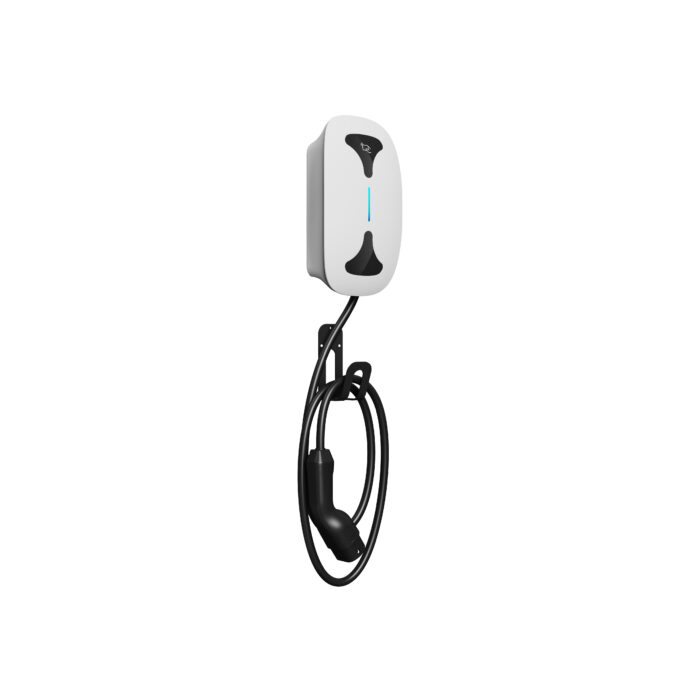

7-11kW AC Home Series Wallbox
7-11kW AC Home Wallbox
Key features
- This product has a tiny size about A4 paper with stylish and simple appearance.
- The wallbox integrates AC charging interface, human computer interaction interface and multiple electrical safety protection designs.
- Follow the environmental principle to save energy.
- Support instantly Plug & Play.
- Start charging with one simple step.
PARAMETERS
YLUXA7KE-A01 | YLUXA11KE-A01 | ||||
Basic Index | Dimension(W*D*H) | 209*96.2*322mm | |||
Charge Connector | Type 2 cable (Type 2 socket optional) | ||||
Cable Length | 4m(7m optional) | ||||
RFID Reader | Mifare ISO/IEC14443 A | ||||
Start Mode | Plug&Play/RFID card/App | ||||
Installation | Wall-mount/Floor-mount(optional) | ||||
HIM | 4.3-inch color screen | ||||
Input | Power Supply | 1P+N+PE | 3P+N+PE | ||
Rated Voltage | 230VAC | 400VAC | |||
Rated Current | 32A | 16A | |||
Output | Output Voltage | 230VAC | 400VAC | ||
Maximum Current | 32A | 16A | |||
Output Power | 7kW | 11kW | |||
Environment | Protection grade | IP65/IK10 | |||
Work Temperature | -30℃~+50℃ | ||||
Work Humidity | 5%~95% | ||||
Work Altitude | <2000m |
Download
7-11kW AC Home Wallbox
Details
PARAMETERS
YLUXA7KE-A01 | YLUXA11KE-A01 | ||||
Basic Index | Dimension(W*D*H) | 209*96.2*322mm | |||
Charge Connector | Type 2 cable (Type 2 socket optional) | ||||
Cable Length | 4m(7m optional) | ||||
RFID Reader | Mifare ISO/IEC14443 A | ||||
Start Mode | Plug&Play/RFID card/App | ||||
Installation | Wall-mount/Floor-mount(optional) | ||||
HIM | 4.3-inch color screen | ||||
Input | Power Supply | 1P+N+PE | 3P+N+PE | ||
Rated Voltage | 230VAC | 400VAC | |||
Rated Current | 32A | 16A | |||
Output | Output Voltage | 230VAC | 400VAC | ||
Maximum Current | 32A | 16A | |||
Output Power | 7kW | 11kW | |||
Environment | Protection grade | IP65/IK10 | |||
Work Temperature | -30℃~+50℃ | ||||
Work Humidity | 5%~95% | ||||
Work Altitude | <2000m |
