480kW Split-type DC/DC Unidirectional Charging Station
- Efficient Heat Dissipation and Intelligent Temperature Control
- Efficient Power Management
- Flexible Output and Compatibility
- Intelligent Features and Platform Compatibility
- User-Friendly Design
INTRODUCTION
The YLNXS series split-type unidirectional DC/DC charging stack systems use 40kW isolated unidirectional DC/DC modules and an advanced star – ring power distribution module design. This boosts charging power utilization efficiency.Featuring high energy conversion efficiency and great system stability, the system performs well in applications like integrated PV-storage-charging systems and DC micro-grids.It’s also flexibly compatible with both air-cooled fast charging terminals and liquid-cooled super charging terminals. This gives users an efficient and reliable charging solution that meets the diverse and efficient charging needs of the future.
POWER CABINET
Basic index | |
Model | YLNXS480K12D |
Rated power(kW) | 480kW |
Max number of plug | 12 |
Liquid-cooling terminal | Optional |
Cooling method | Fan cooling |
HMI | 7-inch color touch screen |
Back-end communication | Ethernet/4G |
Dimensions (WxDxH) | 1050x800x1850mm |
Weight(KG) | 630KG |
Input | |
Voltage | 750VDC(200〜850VDC) |
Current | 660A |
Output | |
Ouput voltage | 200-1000Vdc |
Constant power range | 300-1000Vdc |
Max. efficiency | >95% |
Environment | |
Operating temperature | -20～+50℃ |
Operating environment | Indoor or outdoor(IP54) |

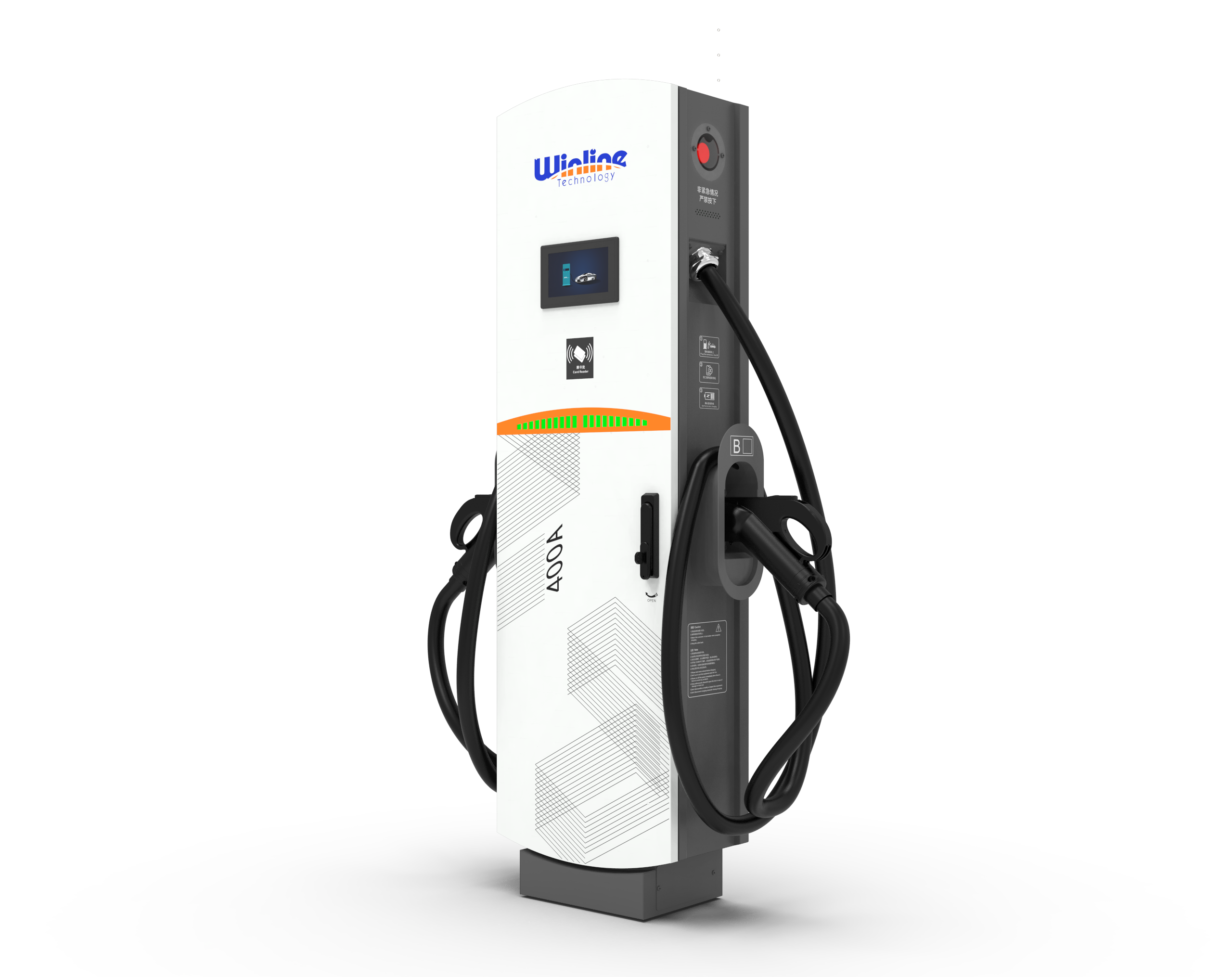

CHARGING TERMINAL
| Basic index | |||||||||
| Model | YLCET250K | YLCET400K | YLCET600K | ||||||
| Rated power(kW) | 250 | 400 | 600 | ||||||
| Max number of plug | 2 | 2 | 1 | ||||||
| Cooling method | Fan cooling | Fan cooling | Liquid cooling | ||||||
| Dimensions (mm)(WxDxH) | 450X250X1600 | 450X250X1600 | 450X250X1650 | ||||||
| Weight（KG） | 100（dual），80（single） | 100（dual），80（single） | 150 | ||||||
| Output | |||||||||
| Ouput voltage | 200-1000Vdc | ||||||||
| Constant power range | 300-1000Vdc | ||||||||
| Current range per plug | 0-250A | 0-400A | 0-600A | ||||||
| Max. efficiency | >97.5% | ||||||||
| Start-up method | RFID/VIN/Credit Card/Scan QR code/Manually(optional) | ||||||||
| Environment | |||||||||
| Operating temperature | -20～+50℃ | ||||||||
| Operating environment | Indoor or outdoor（IP55） | ||||||||
Download
480kW Split-type DCDC Unidirectional Charging Station data sheet
Details
INTRODUCTION
The YLNXS series split-type unidirectional DC/DC charging stack systems use 40kW isolated unidirectional DC/DC modules and an advanced star - ring power distribution module design. This boosts charging power utilization efficiency.Featuring high energy conversion efficiency and great system stability, the system performs well in applications like integrated PV-storage-charging systems and DC micro-grids.It's also flexibly compatible with both air-cooled fast charging terminals and liquid-cooled super charging terminals. This gives users an efficient and reliable charging solution that meets the diverse and efficient charging needs of the future.
POWER CABINET
Basic index | |
Model | YLNXS480K12D |
Rated power(kW) | 480kW |
Max number of plug | 12 |
Liquid-cooling terminal | Optional |
Cooling method | Fan cooling |
HMI | 7-inch color touch screen |
Back-end communication | Ethernet/4G |
Dimensions (WxDxH) | 1050x800x1850mm |
Weight(KG) | 630KG |
Input | |
Voltage | 750VDC(200〜850VDC) |
Current | 660A |
Output | |
Ouput voltage | 200-1000Vdc |
Constant power range | 300-1000Vdc |
Max. efficiency | >95% |
Environment | |
Operating temperature | -20～+50℃ |
Operating environment | Indoor or outdoor(IP54) |
CHARGING TERMINAL
| Basic index | |||||||||
| Model | YLCET250K | YLCET400K | YLCET600K | ||||||
| Rated power(kW) | 250 | 400 | 600 | ||||||
| Max number of plug | 2 | 2 | 1 | ||||||
| Cooling method | Fan cooling | Fan cooling | Liquid cooling | ||||||
| Dimensions (mm)(WxDxH) | 450X250X1600 | 450X250X1600 | 450X250X1650 | ||||||
| Weight（KG） | 100（dual），80（single） | 100（dual），80（single） | 150 | ||||||
| Output | |||||||||
| Ouput voltage | 200-1000Vdc | ||||||||
| Constant power range | 300-1000Vdc | ||||||||
| Current range per plug | 0-250A | 0-400A | 0-600A | ||||||
| Max. efficiency | >97.5% | ||||||||
| Start-up method | RFID/VIN/Credit Card/Scan QR code/Manually(optional) | ||||||||
| Environment | |||||||||
| Operating temperature | -20～+50℃ | ||||||||
| Operating environment | Indoor or outdoor（IP55） | ||||||||
