Winline‘s liquid-cooled charging module, the LCR100040A-40kW, represents a significant leap forward in EV charging technology. Utilizing full liquid cooled ultra-fast charging technology, this module achieves exceptional heat dissipation efficiency that outperforms traditional air-cooled systems. The innovative cooling solution enables the module to maintain optimal temperatures even during continuous high-power operation, ensuring reliable performance in demanding environments. With a wide constant power range of 300-1000V, our liquid-cooled charging module accommodates various vehicle voltage requirements while delivering consistent charging speeds. The advanced thermal design not only enhances durability but also contributes to the module’s impressive 95.5% full-load efficiency, significantly reducing energy waste compared to conventional solutions.
Space-Efficient Design Meets High-Performance Charging

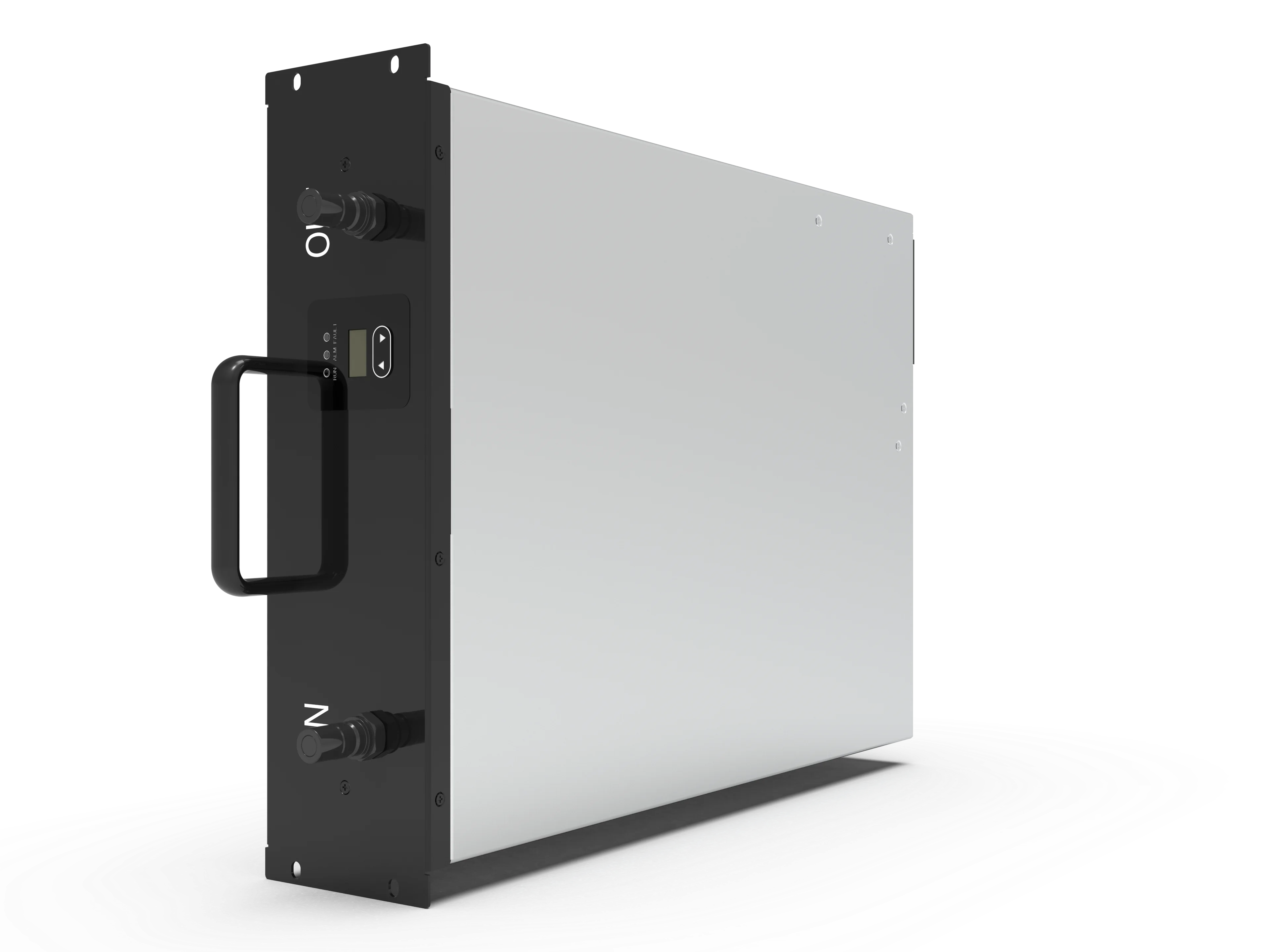

The compact architecture of Winline’s liquid-cooled charging module sets new standards for power density in charging infrastructure. Featuring an industry-leading 41W/in³ power density, this liquid cooled ultra-fast charging solution enables more compact charging station designs without compromising performance. The space-saving advantages are particularly valuable for urban installations where real estate is limited. Our module’s quick-plug design for water inlet and outlet connections simplifies maintenance and allows for leak-free module replacement, minimizing downtime in commercial operations. These design innovations make the liquid-cooled charging module an ideal choice for charging station operators looking to maximize site utilization while delivering liquid cooled ultra-fast charging capabilities to their customers.
Intelligent Control for Optimized Charging Performance
Winline’s liquid-cooled charging module incorporates sophisticated digital control systems that ensure precise power delivery and operational reliability. The fully digital control with dual DSP design enables comprehensive monitoring and adjustment of charging parameters in real-time. This intelligent system architecture enhances the performance of our liquid cooled ultra-fast charging technology, automatically adapting to different vehicle requirements and grid conditions. The digital control platform also facilitates remote diagnostics and firmware updates, reducing maintenance costs and improving system uptime. For charging network operators, these smart features translate into more efficient operations and better utilization of their liquid-cooled charging module investments.
Conclusion: The Future of High-Power Charging Infrastructure
Winline’s liquid-cooled charging module technology represents a transformative approach to liquid cooled ultra-fast charging infrastructure. By combining superior thermal management with high efficiency and compact design, the LCR100040A-40kW module addresses the key challenges facing today’s charging station operators. The solution’s versatility makes it suitable for various applications, from urban fast-charging hubs to highway rest stops and fleet charging depots. As the EV market continues to demand faster, more reliable charging solutions, Winline’s liquid-cooled charging module provides a future-ready platform that delivers both performance and operational efficiency. For businesses looking to upgrade their charging infrastructure, this technology offers a compelling combination of technical advantages and practical benefits that can enhance their service offerings and bottom line.
