CHARGING MODULE

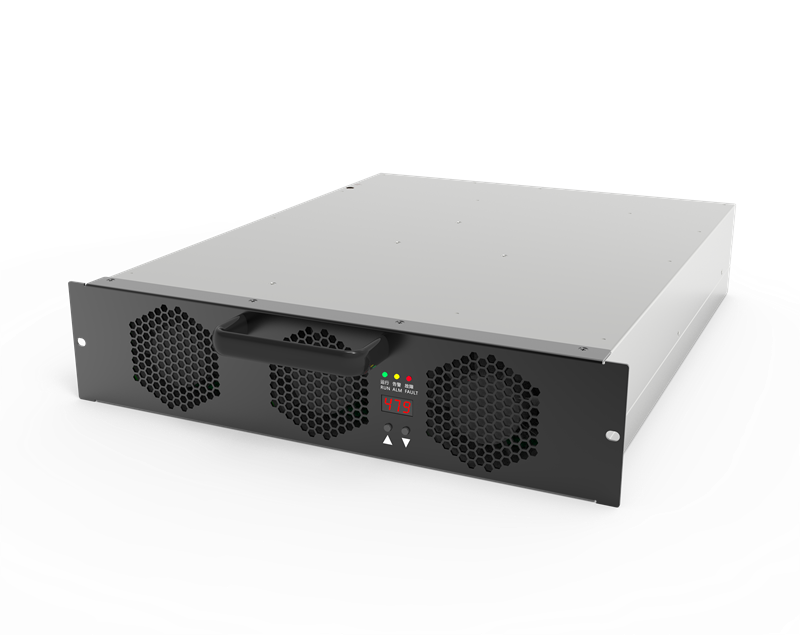

Charging Module
UXR100030
UXR100030
| Item | Parameters | |
| Basic Indicators | Dimensions | 85mm（H）×360mm（W）×459mm（D） |
| Weight | ≤20kg | |
| Efficiency (full load) | >95.5% | |
| Input Characteristics | Input Voltage | 285Vac ～ 475Vac，three phase + Protective Earth |
| Power Factor | ≥0.99 | |
| ITHD | ≤5% | |
| Output Characteristic | Output Power | 30kW@output voltage ≥300Vdc |
| Voltage Range | 100Vdc ~ 1000Vdc, default value：200Vdc | |
| Voltage Stabilized Accuracy | ≤±0.5% | |
| Current Stabilized Accuracy | ≤±1% | |
| Ipple Voltage Peak Value Coefficient | ≤1% | |
| Environmental Specifications | Operating Temperature | －40℃～＋75℃，output derating at above 55°C |
| Altitude | ≤2000 m. Full power;> 2000 m, the operating temperature decreases by 1°C for each additional 100 m. | |
| Certification | CE、CB | |
