CHARGING MODULE
Charging Module

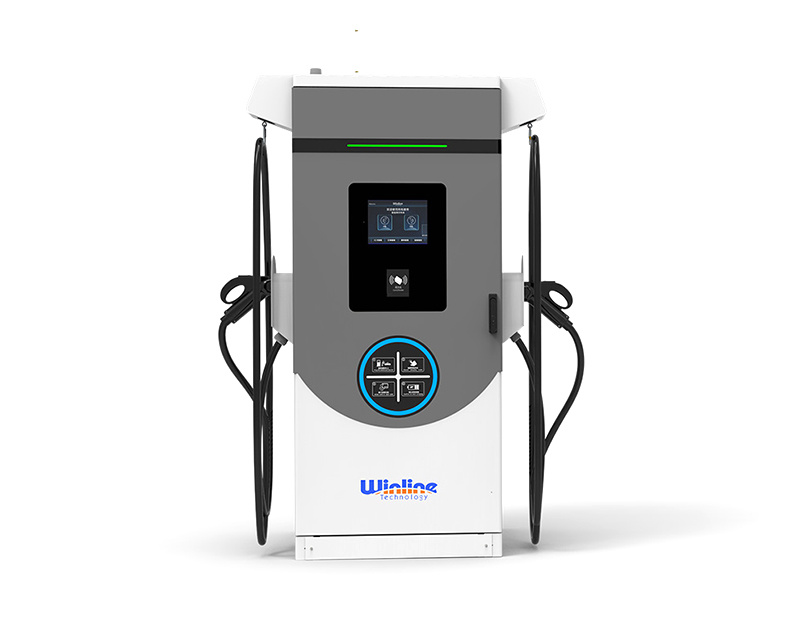

Electree Maple 50-80 KW
Electree Maple 50-80 KW
| DC output power rating (max) | 50/60/80 kW |
| Output connector | CCS2+CCS2 CCS2+CHAdeMO |
| DC output voltage range |
CCS 2：100-1000Vdc, Max.200 A (Constant power range 300-1000Vdc) CHAdeMO：100-500Vd, Max. 125A (Constant power range300-500Vdc） |
| Efficiency & Noise | > 95% & ≤ 55 dB |
| Cooling | Intelligent air blast cooling |
| Display | 10.1 inch color Touch Screen, |
| Payment | IC /RFID/ Credit card/ APP |
| Communication |
DIN 70121/ISO15118/CHAdeMo/OCPP 1.6/OCPP2.0(upgradeable) |
| Operating environment | IP54, -30 ~ +50°C, ≤2000m |
| Dimensions (W * D * H) | 800mm x 500mm x 1800mm |
| Certification | CE,CB,UKCA,TR25 |
