CHARGING MODULE
Charging Module

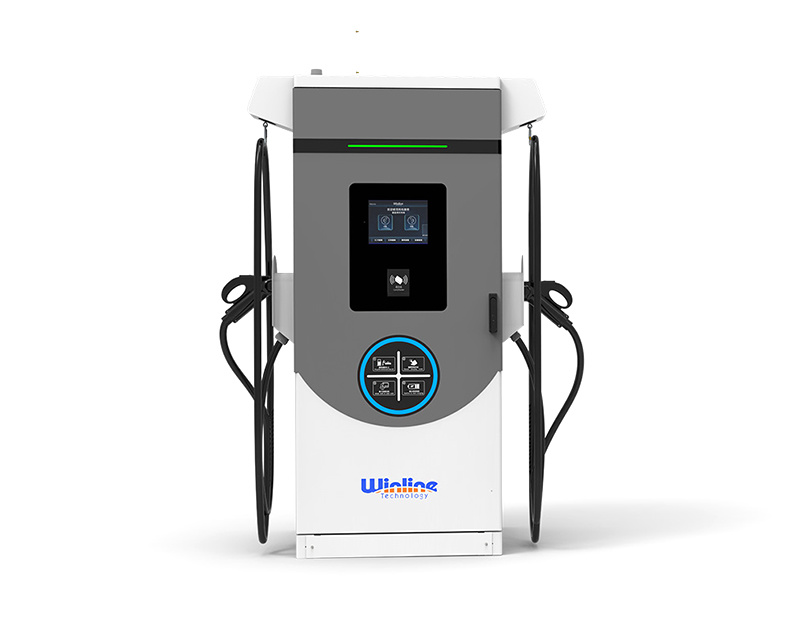

Electree Sequoia 320-400kW
Electree Sequoia 320-400kW
| DC output power rating (max) | 320/400kW |
| Output connector | CCS2+CCS2 CCS2+CHAdeMO |
| DC output voltage range |
CCS 2：100-1000Vdc, Max.400 A (Constant power range 300-1000Vdc) CHAdeMO：100-500Vd, Max. 125A (Constant power range300-500Vdc） |
| Efficiency & Noise | > 95% & ≤65 dB |
| Cooling | Intelligent air blast cooling |
| Display | 10.1 inch color Touch Screen, |
| Payment | IC /RFID/ Credit card/ APP |
| Communication |
DIN 70121/ISO15118/CHAdeMo/OCPP 1.6/OCPP2.0(upgradeable) |
| Operating environment | IP54, -30 ~ +50°C, ≤2000m |
| Dimensions (W * D * H) | 850mm x1100mm x 2100mm |
